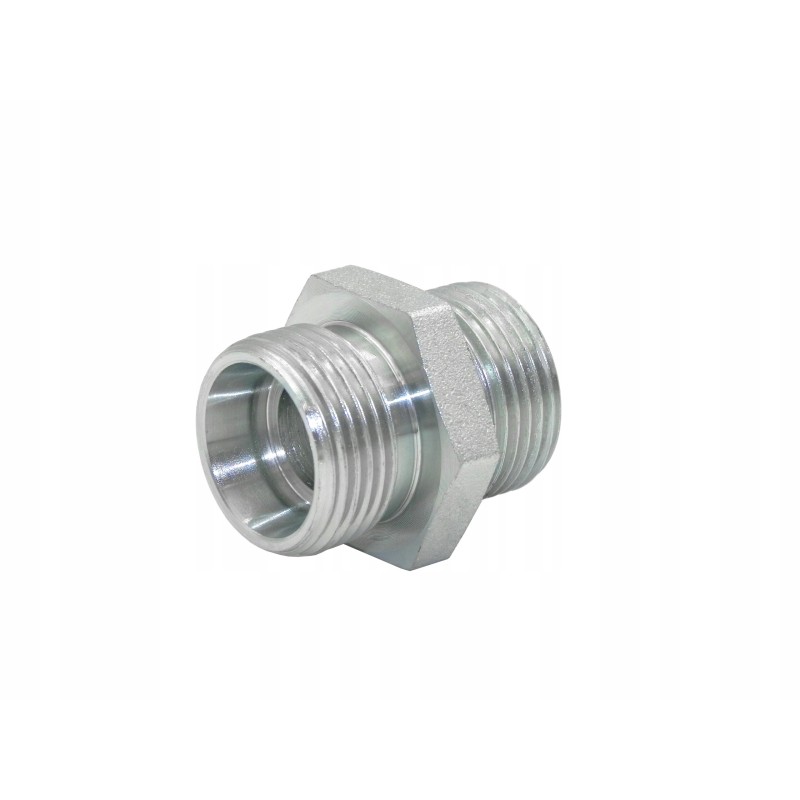

Hydraulic connector metric connector m36x2 25s

HYDRAULIC CONNECTOR M36x2 25S CONNECTORApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connector, standardized, light version with conical self-sealing clamping tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Technical data:

Thread on both sides: external metric 36x2 25S - heavy standard

Nominal pressure : 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
