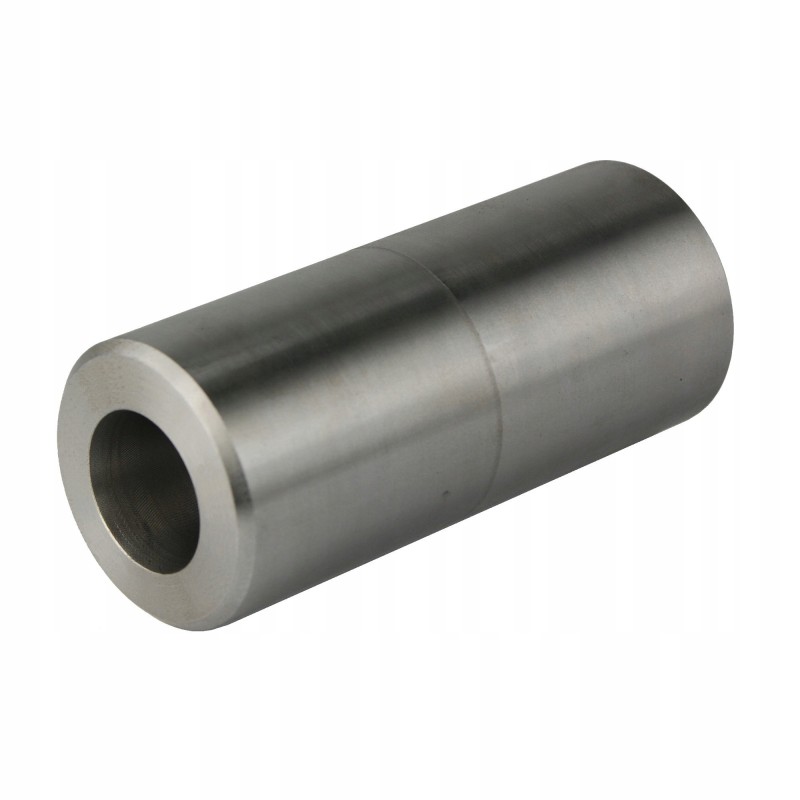

Crocodile loader bushing for tine 880mm

WELDING BUSHING FOR SETTING A TOOTH Production:

Original product of the Hydrolider brand, symbol: 1.53.01.020

Application:

Widely used in agriculture, construction and industry. Mainly used in loaders, crocodiles, grabs, etc.

Sleeve designed for the lower articulated tooth, 880 mm long

General information:

Welded sleeve, turned from a rod, not a pipe. Attached to the loader or crocodile frame, it stabilizes and protects the tooth against cracking or bending.

Technical data:

Total length: 120 mm

Outer diameter: 49 mm

Material: hardened weldable steel

Advantages of the system Original product of the Hydrolider brand:

Sleeve designed and manufactured especially for a specific tooth 880mm, thanks to which the tooth is perfectly seated and its entire surface adheres to the inner walls of the sleeve. Thanks to this, it is able to carry greater loads and does not break.

The so-called bushings. universal, rolled from a pipe will not provide such protection and the teeth embedded in them quickly bend and crack.

Our sleeve ensures that the tooth is properly supported and there is no chance of it breaking under load.

An example photo of the tooth being mounted in the sleeve in the Original product system Hydrolider brands:
