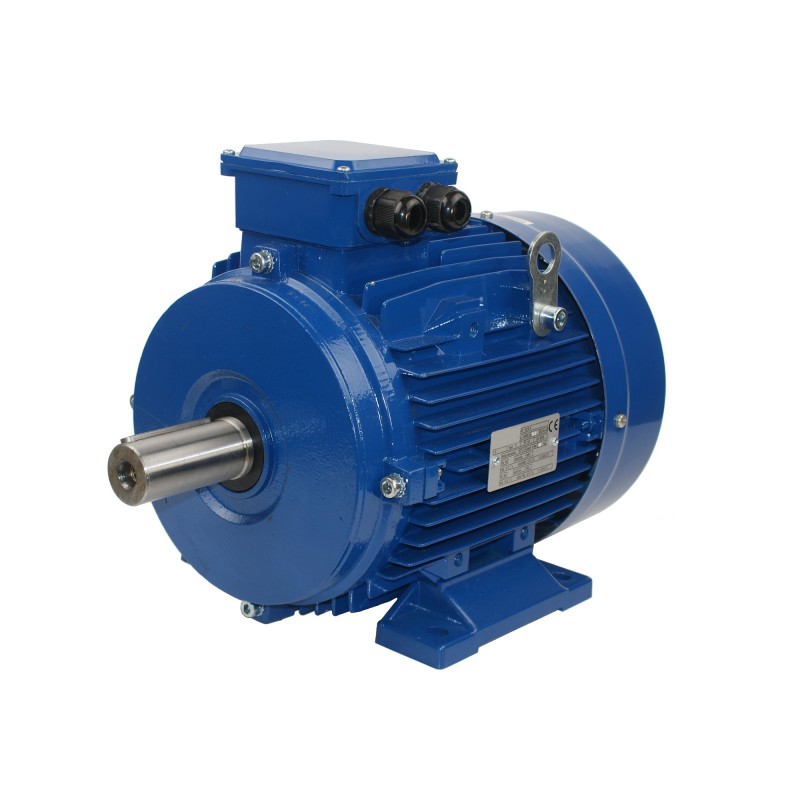

3-phase electric motor b3 2 2kw 1420 rpm

3-PHASE ELECTRIC MOTOR 400V 2.2kCAP PRODUCTION:

Original product of the Hydrolider brand, symbol: 1.42.11.022.1

Application:

It has a wide range of applications in systems hydraulics in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose motors, adapted for continuous operation in industry and agriculture. In hydraulic systems, used to drive pumps. In mechanical systems, to put other system components into rotation.

It is possible to install external cooling or a handbrake on the engines.

Technical data:

Type: AHC 100L 1-4

Power (kW): 2.2

Rated torque (Nm): 14.8

Current (A): 4.84

Voltage (V): 400

Rotation speed (rpm): 1420

Rotation direction: right or left

Diameter drive shaft (mm): 28

Key on the shaft: yes

Sealing: IP55 on both sides

Flange for mounting the bell connector: no

Mounting claws: yes

Weight (kg): 21

Housing: aluminum

Winding: copper

Motors depending on deliveries are shipped in blue or silver.
