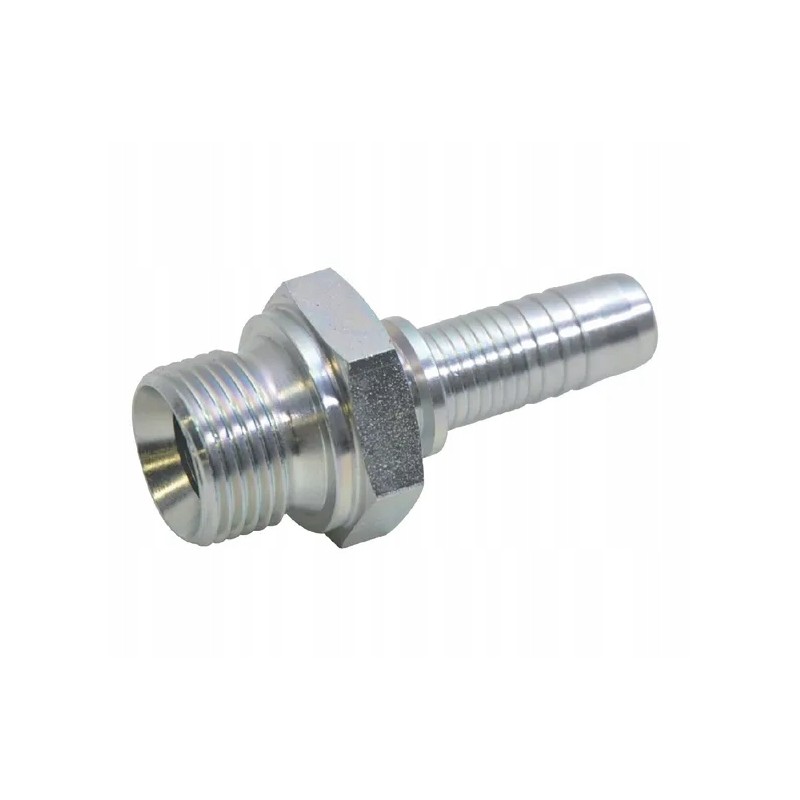

Pn108 tip dn10 1 2 bsp

PN108 Tip DN10-1/2 BSP EAN

8716106441228

Cone angle

60 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Male

Type of connector no. 1 - code

AGR

Length of connector no. 1

31.3 mm

Connector thread diameter

1/2 inch

Connector Thread Type

BSP

Wrench Size for Connector No. 1

27.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Diameter of connection no. 2

3/8 inch

Diameter of connection no. 2

10 mm

ISO standard

228

8434-6

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

BSP male thread with 60° internal cone

Type

AGR
