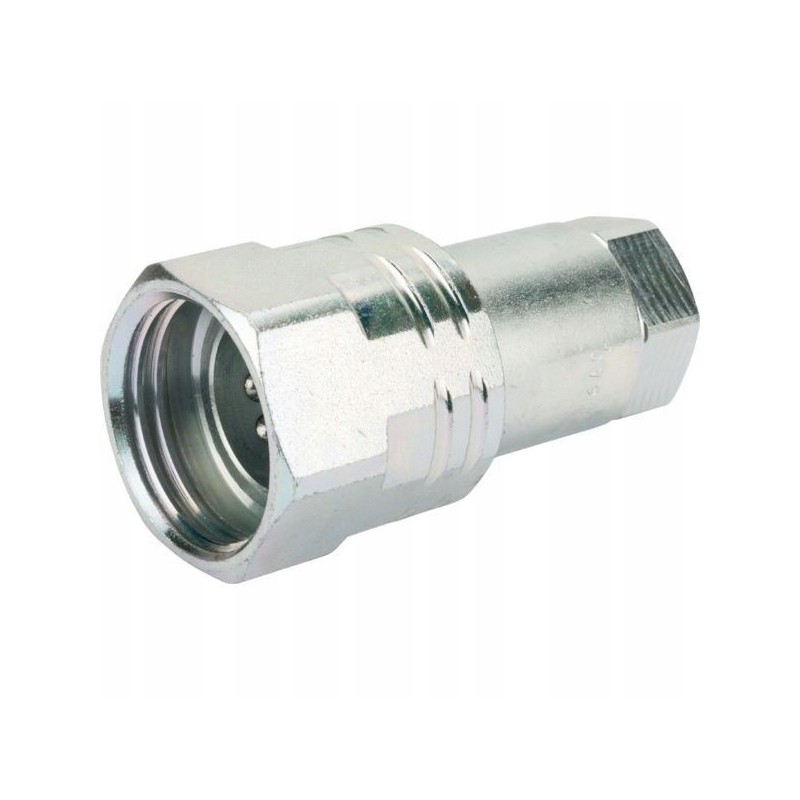

Part number: VV12GASF
Unit: piece
Material: Steel
Technical information: - The connector should be screwed on until it stops
Type: Sleeve
Properties: - Designed for high dynamic loads - VV joints can be combined with both VV and NV (Push) plugs -Pull)
Valve type: Poppet
Application: - Construction machinery - Hydraulic tools - Industry - Mineral oil based fluids
Size: 12.5 mm
Outer diameter: 42 mm
ISO standard: 1179-1
Surface treatment: White, passivated
Surface treatment: Chromium-plated
Connector thread type: BSP
L Length: 114.7mm
Max. temp: +125°C
Min. temp: -25°C
Total length: 3.11 inch
Wrench size: 38.0 mm
Seal material: Nitrile rubber [NBR]
Nominal pressure: 300BAR
Interchangeable with: Faster VVS
Weight: 307.7 g
Connector type - male /female: Female
Connector type no. 2 - male/female: Female
Possibility of connection under pressure: Yes
Max operating temperature: 125°C
Min operating temperature: -25°C
Quick connector lock type: Thread
Connection method: Screwed
Max flow: 45l/min
BB: 78.7mm
D d: 42mm
Seal material: NBR / PTFE
L1 Total length: 79mm
Disconnection method: Screwed
Thread type: F
Safety factor: 1:2
X1 X1 : 38mm
X2 X2: 27mm
