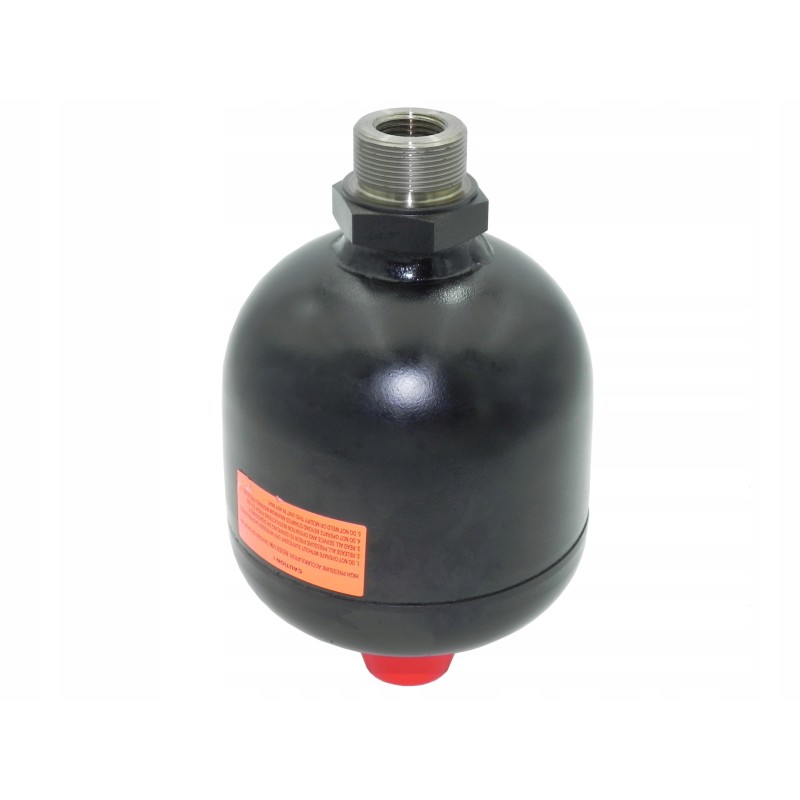

Shock absorber, hydroaccumulator, 1 4l, double thread

HYDRAULIC SHOCK ABSORBER 1.4L HYDRO ACCUMULATOR WITH DOUBLE THREAD.FREE FILLING OF THE HYDRO ACCUMULATOR AT THE INDICATED PRESSURE

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.< p>

Shock absorbers, also known as hydroaccumulators, are used in installations where there is a periodic demand for damping hydraulic energy. The task of hydraulic accumulators is to collect hydraulic energy, dampen impacts and reduce pressure waves.

They are used in TUR front loaders, agricultural machines, aggregates, plows, subsoilers, construction machines, cranes and other machines that are exposed to are exposed to sudden pressure changes in the hydraulic system.

Technical data:

The shock absorbers are factory-charged with nitrogen at a pressure of 50Bar. It is possible to charge the shock absorber free of charge to the pressure indicated by the customer, in this case, please provide information when placing the order. They have a mechanism that allows you to easily and safely reduce the charging pressure according to the individual needs of the user.

Double thread:

- Internal thread in the body: G1/2

- External thread in the body: M33x1.5

Maximum amount of oil in the oil chamber: 1L

Total capacity of the shock absorber: 1.4L

Temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

We also offer a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
