Dkol 90 clamping dn6 1 2sn m10x1 x10 hydrolider

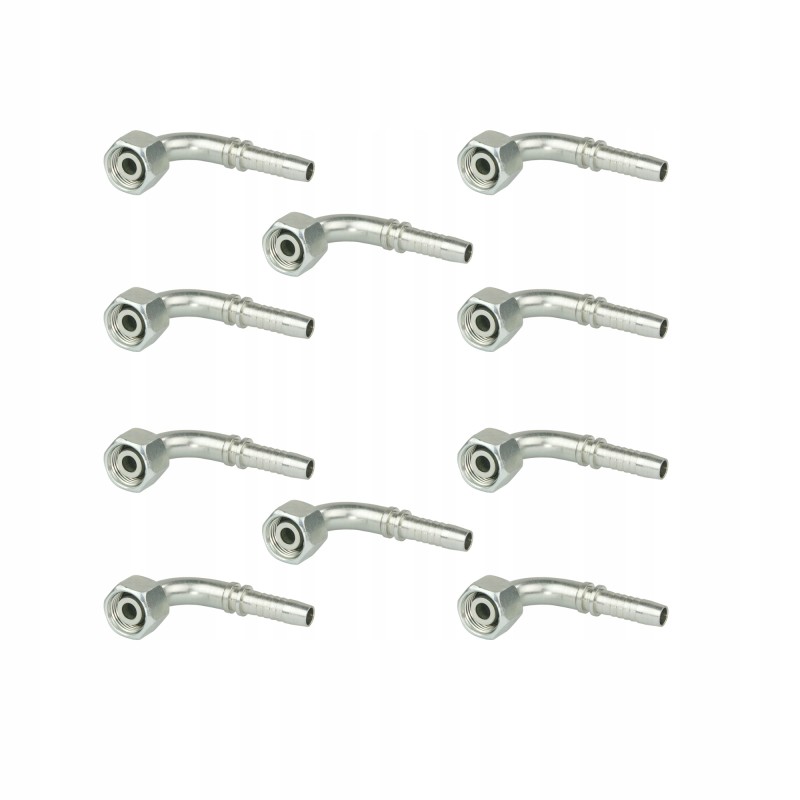

10 PCS ANGLE HYDRAULIC FITTING DKOL-90 10x1 FOR HYDRAULIC HOSE 1SN / 2SN DN6 Production:

Hydrolider, symbol: 4.06.06.010.10

Application:

The fitting is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN6 group with single and double braiding. Fits sleeves from the DN6 group with the marking 1SN and 2SN.

Technical data:

90° angle fitting, 10x1 metric thread tip, light version with a 24° cone and an additional sealing ring. Made in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating ZN alkaline - minimum thickness 8µm Chromate passivation type A, free from chromium (VI) in accordance with the DIN EN 15205 standard. Thanks to the technology used, all our forging elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN6 1SN, DN6 2SN or other with an internal diameter of 12-13mm
