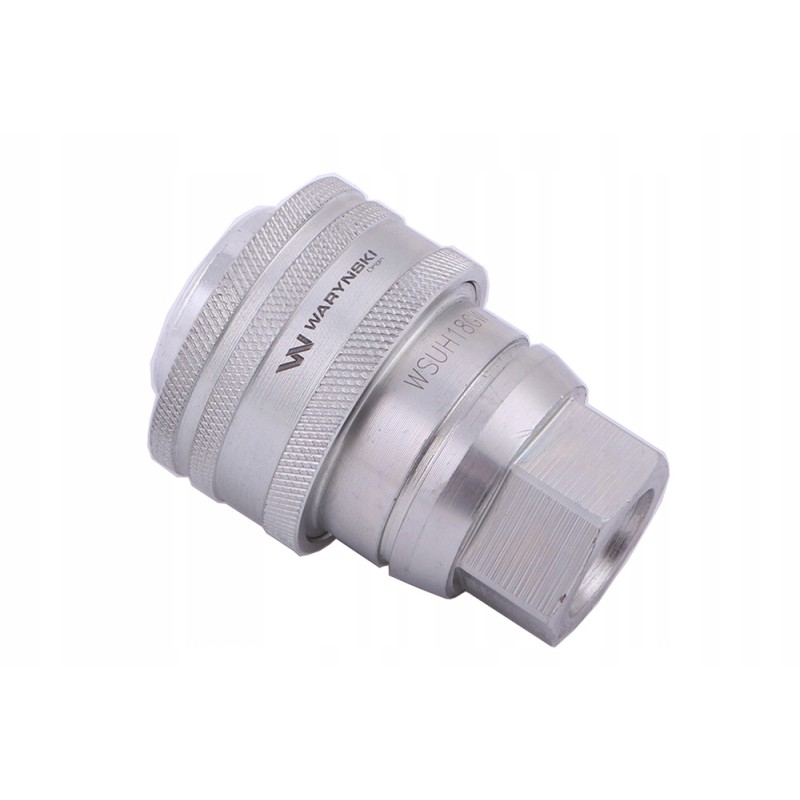

Brake quick connector, socket M22x1 5, internal Warynsk

BRAKE QUICK CONNECTOR M22X1.5 INTERNAL WARN THREADBRAKE QUICK CONNECTOR M22X1.5 INTERNAL WARN THREAD Hydraulic brake quick connector, M22x1.5 internal thread Waryński socket. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. The sockets are equipped with additional protection/plug. Brake quick connectors guarantee a tight connection in the hydraulic system.

*Parameters:

*Thread: Internal M22x1.5​​​​​​

*Type: Nest​​​​​​

*Cone - thread: Metric

*Max. working pressure: 15.0 Mpa / 150 bar​​​​​​​

*Operating temperature: from -20°C to +100°C

*Fits plugs: WSUH18SZ, WSUH22SZ, WSUH12SZ

-️ Application:

Waryński brake quick connectors are used in hydraulic braking systems (trailer brake connector).,WSUH18SZ, WSUH22SZ, WSUH12SZ

* Producer: Waryński
