Valve plug m20x1 5 screwed zsr6m20wtk warynski

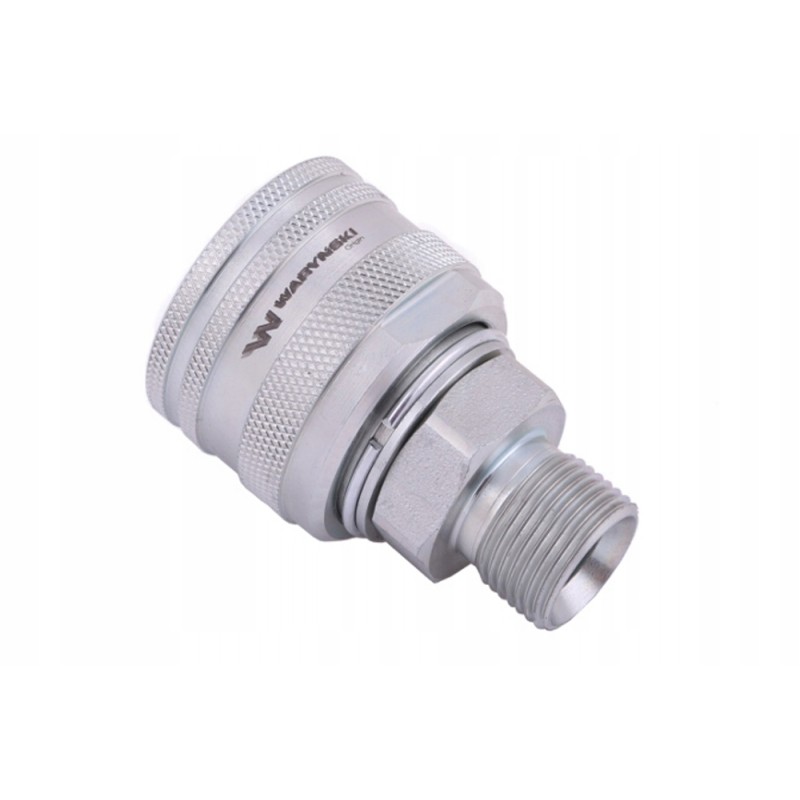

VALVE PLUG M20X1.5 SCREWED (ZSR6M20WTK) WARYŃSKIAgricultural quick connector Waryński - plug with external thread M20x1.5.

The most popular old-type hydraulic valves with a very wide spectrum applications in agriculture. They are designed in accordance with dimensional requirements and quality, which specify in detail the performance characteristics and dimensions. Thanks

strong construction, suitable for use in difficult operating conditions of agricultural machinery.

Specification:

Operating temperature - from -25°C to +120°C

Thread - External M20x1.5

Max working pressure - 25 Mpa / 250 bar Type - Plug - Screwed agricultural

Cone - thread - 60°

Fits plugs - WRSM22GN, WRSM20GN, WRSM22WEWGN

Group - Quick connectors

Application:

Screwed quick couplings (valves) used in agricultural machines. Due to the construction

old type ball socket joints without seals, it is inevitable that trace amounts of oil in the place of direct contact between the socket and the plug in the disconnected position.

This phenomenon will be unnoticeable in the new type of connectors ISO 7241-A Waryński ISO 7241-A (EURO)

Waryński and ISO 16028 (dry-cut) Waryński.

Manufacturer: Waryński

WRSM20WT
