Agr forging dn12 1 2sn g5 8 x10 hydrolider

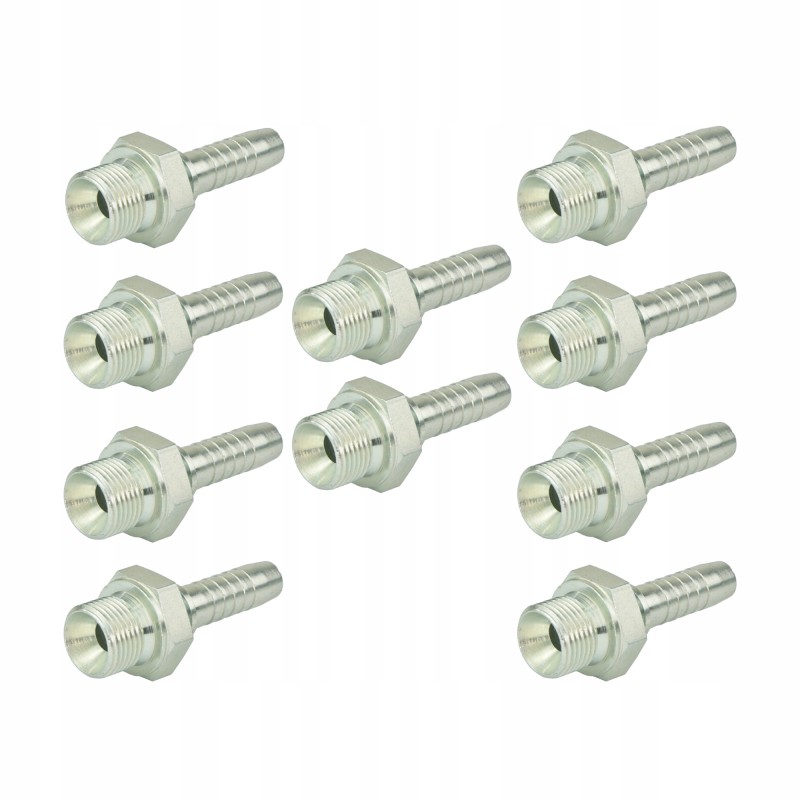

10 PCS STRAIGHT HYDRAULIC FITTING AGR 5/8' FOR HYDRAULIC HOSE 1SN / 2SN DN12 (13) Production:

Hydrolider, symbol: 4.12.12.018

Application:

Fitting used in the production of hydraulic hoses, widely used in agriculture, industry and forestry . Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN12 (13) group with single and double braiding. Fits sleeves from the DN12 (13) group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with inch [BSP] 5/8' external thread, light version with a 60° cone. Made in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables: electrolytic protective coating

Alkaline ZN - minimum thickness 8µm, type A chromate assivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN12 (13) 1SN, DN12 (13) 2SN or other with an internal diameter of 12-13mm
