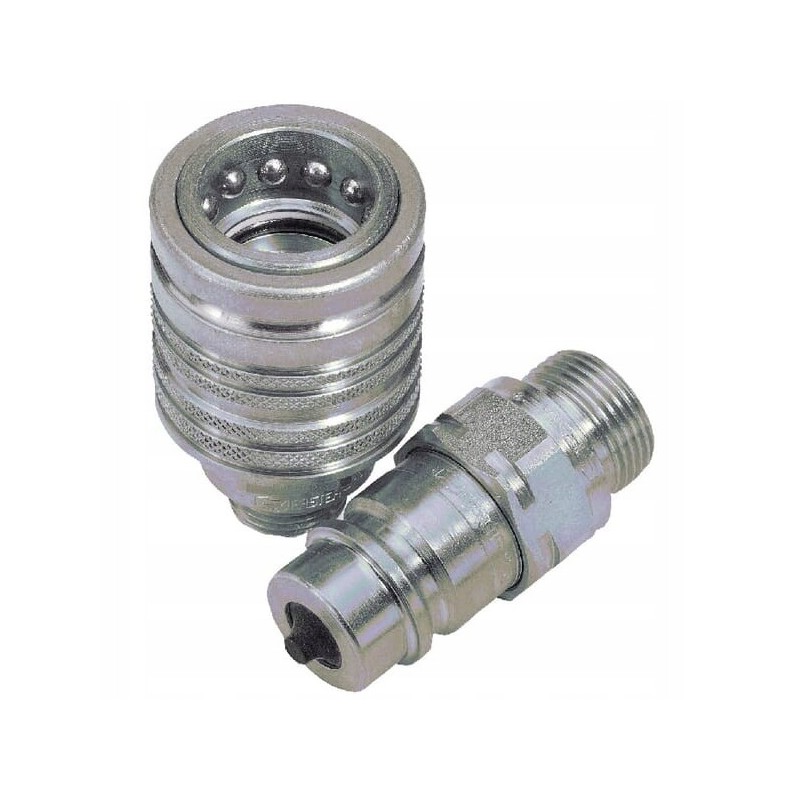

Cpv0851415f quick connector

Quick connector INDEX: CPV0851415F

Length: 3.52 inch, 3.52 inch

Material: Steel, Steel

Technical information: - Connection is made by pressing the plug (one-hand operation), - Connection is made by pressing the plug (one-hand operation)

Properties: - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double acting) - Tear-off function - Induction hardening in places exposed to rapid wear, - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double acting) - Tear-off function - Induction hardening in places exposed to rapid wear

Valve type: Mushroom, Mushroom

Application: - Universal use - Agricultural machinery - Mineral oil-based fluids, - Universal use - Agricultural machinery - Mineral oil-based fluids

Size: 12.5mm, 1/2 inch

Outer diameter: 1.5 inch, 1.5 inch

ISO standard: 7241-A, 7241-A

Connection diameter: 38 mm, 38 mm

Surface treatment: Chrome-plated, Chrome-plated

Seal material: Nitrile rubber [NBR], Nitrile rubber [NBR]

Weight: 270g, 270g

Operating pressure: 250BAR, 250BAR

Connector type no. 2 - male/female: Male, Male

Possibility of connecting under pressure: No, No

Operating temperature max: 125°C, 125°C

Operating temperature min: -25°C, -25°C

Quick connector lock type: Balls around the circumference, Balls around the circumference

Connection method: Press to connect, Press to connect

Connection diameter no. 2: 38mm, 1.5inch

Thread pitch connector No. 2: 1.5mm, 1.5mm

Wrench size for connector No. 2: 27mm, 1.06inch

Length of connector No. 2: 89.3mm, 89.3mm

Disconnection method: Lever, Lever

Thread diameter of connector No. 2 : M14, M14

Connection thread type no. 2: Metric, Metric

Flow at 2 bar pressure: 75l/min, 75l/min

OE reference number: CPV085/1415 F, CPV085/1415 F

Connection type no. 1 - male/ female: Female, Female

Connector No. 1 key size: 19mm, 0.75inch
