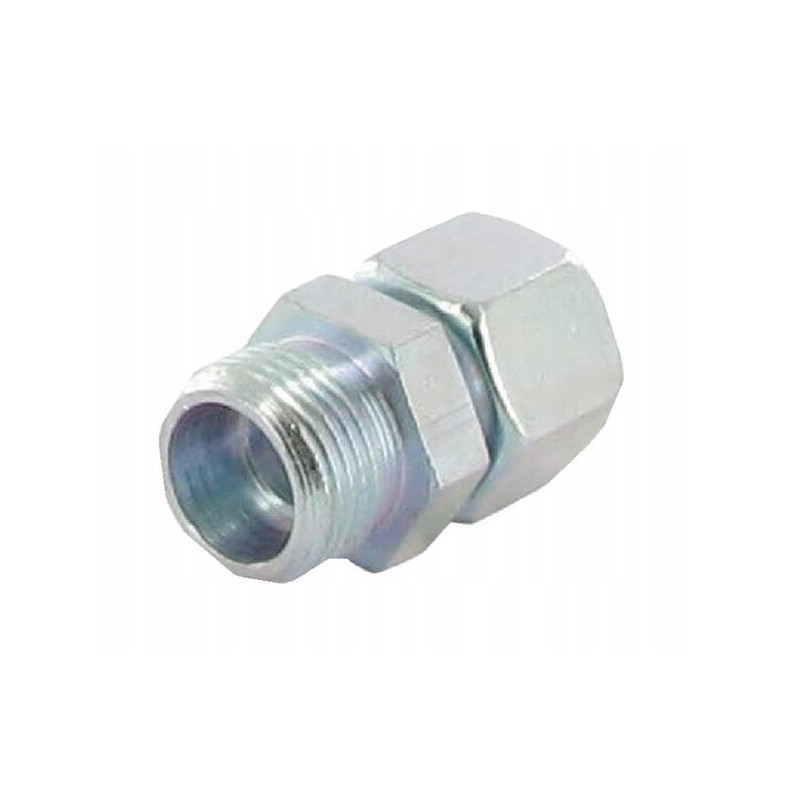

Straight connector with nut m14x1 5 8l m16x1 5 8s

Straight connector with nut M14x1.5 8L - M16x1.5 8S Parameters

Part Number: KOVO8L8S

Unit: Piece

Manufacturer: Dietzel

Shape: Straight - 2 Sides Connector

Connector Type No. 1: Swivel Nut

Connector Type No. 1 - Male/Female: Female

Connector No. 1 Thread Diameter: M14

Surface Treatment : Zinc-plated

Max. working pressure: 315 BAR

Thread pitch of connector no. 1: 1.5 mm

Series: L/S

Thread type of connector no. 1: Metric

Type of connector no. 2: Thread

Type of connector no. 2 - male/ female: Male

Connector No. 2 thread diameter [M2]: M16

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Total length: 346 mm

Pressure: PN (nominal pressure) in accordance with DIN 2401 BAR

Total length [L]: 32 +/- 2 mm mm

pipe Ø [D2]: 8 mm

pipe [D1]: 8 mm

Specifications

- Pre-assembled O-ring Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Properties

- Inside L

- Outside S

It consists of

- Main part

- Union nut

- Sealing cone with self-sealing ring Technical information

- Available on request in a stainless steel version - Viton

gasket available on request - Galvanized without CR6
