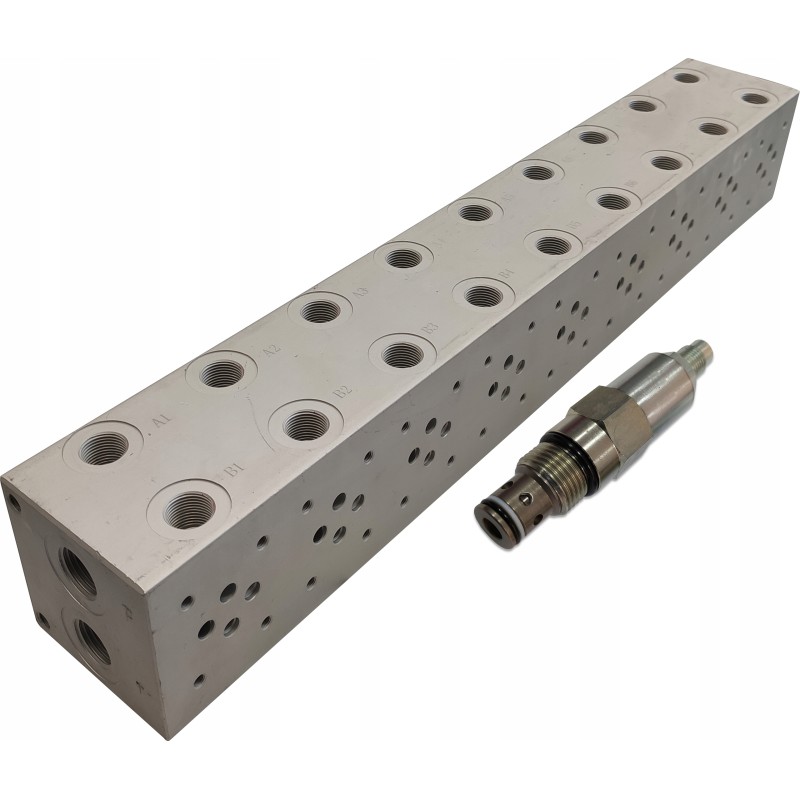

Valve plate block ng6 cetop 9 sections with valve

AL 6 / NG 6 CETOP 3 Valve Connection Plate SKRAW-MET CODE:[1837]The monoblock construction allows for simple creation of circuits without the use of pipes and fittings, thus reducing the overall dimensions to a minimum.

These blocks are one of the main elements of CETOP NG6 hydraulic distributors. Up to nine such slide valves can be mounted on it.

Hydraulic cartridge valve blocks are very popular in various mobile and industrial hydraulic applications such as construction machinery industry, hydraulic systems, types of various hydraulic power units, hydraulic lifts and many other various applications for controlling the direction of hydraulic oil flow and hydraulic power.

The valve plates are characterized by high quality of the material from which they are made.

The valve plate is equipped with an overflow valve that protects the system against excessive pressure. Moreover, a manometer to measure this pressure can be installed in its place. (you will find them on our other auctions)

Technical specifications: Maximum flow: 50 L/min

Number of sections: 9

Material: Cast iron

Recommended hydraulic oil based on mineral oil

Recommended oil filtration at the level of 10 - 15 µ

CONNECTION PORTS:P: power supply from the pump internal thread in the block: BSP 1/ 2'

T: return to the tank internal thread in the block: BSP 1/2'

A and B: outlets for hydraulic cylinders or motors internal threads in the block: BSP 3/8 '

Overflow valve: BSP 1/2'

Temperature and pressure range: Permissible ambient temperature: -40 C to +60°C

Permissible oil temperature : -15 C to +80°C

Nominal pressure: 200bar

Maximum pressure: 240bar
