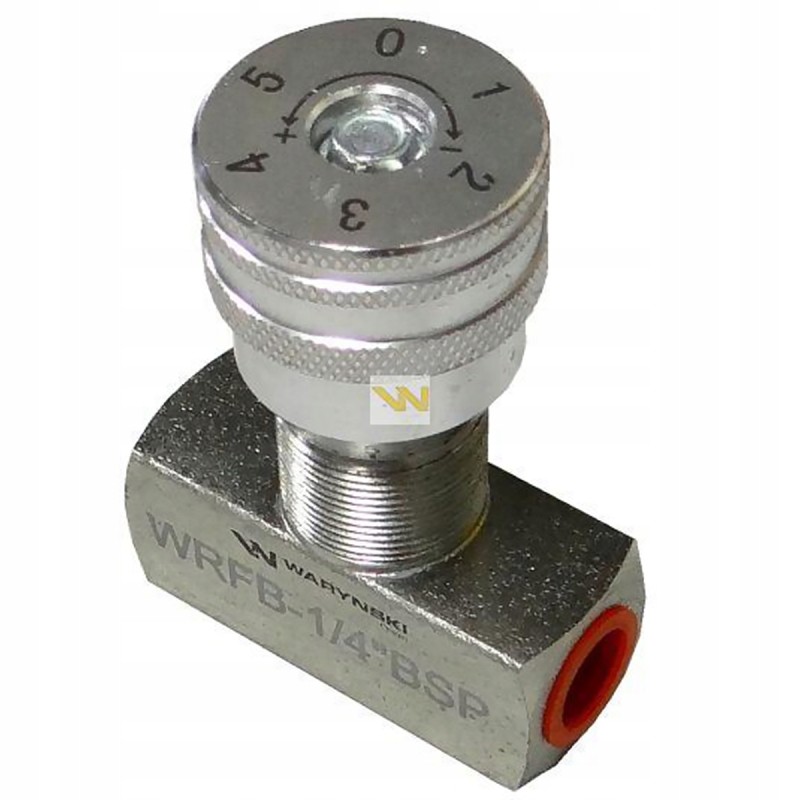

Throttle valve WRFB 90 1/4' BSP Waryński MIZAR number: 52738

Throttle valve WRFB 90 1/4' BSP Waryński The purpose of throttle valves is to influence the value of the working fluid stream supplied to the receiver. By adjusting/changing the oil flow rate, you control, for example, the operating speed of hydraulic cylinders or hydraulic motors, which are powered by a constant displacement hydraulic pump.

Throttling works in both flow directions. The repeatability of the setting can be checked on the scale located on the knob. The volume flow depends on the pressure difference and the viscosity of the hydraulic oil. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions.

Thanks to their strong construction, they are suitable for use in difficult working conditions in agricultural and construction machines.

Characteristics:

Thread: Internal 1/4'

Length: 50 mm

Collective packaging: 1 pc

Type: Throttle valve

Cone - thread: BSP

Max. working pressure: 35.0 Mpa / 350 bar

Working temperature: from -20°C up to +100°C

Max. flow: 12 L/min

Max. height: 73 mm

Max. width: 30 mm

Material: Steel (body), Aluminum (knob)

MIZAR number: 52738
