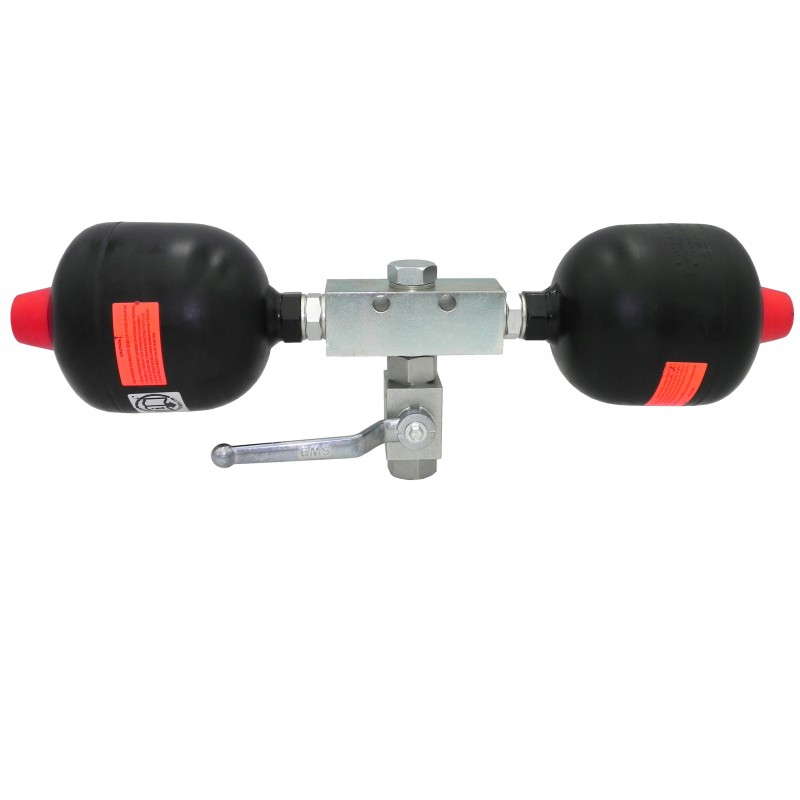

Shock absorber, double hydroaccumulator 1 4l for round

DOUBLE HYDRAULIC SHOCK ABSORBER 2x1.4L WITH SHUT-OFF BALL VALVEApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Shock absorbers, also known as hydroaccumulators, are used in installations , where there is a periodic demand for hydraulic energy damping. The task of hydraulic accumulators is to collect hydraulic energy, dampen impacts and reduce pressure waves.

Double shock absorbers are used mainly in TUR front loaders, construction machines, cranes and other machines that are exposed to sudden shocks while driving or working. pressure in the hydraulic system.

Technical data:

The shock absorbers are factory-charged with nitrogen at a pressure of 70 and 30 Bar. They have a mechanism that allows you to easily and safely reduce the charging pressure according to the individual needs of the user. The ball valve is used to turn the shock absorption on and off depending on your needs.

Internal thread on the ball valve body: BSP 1/2'

Internal thread on the shock absorber body: BSP 1/2'

Total capacity of one shock absorber: 1.4L

Maximum amount of oil in the oil chamber: 1L

Shock absorber body material: cast iron.

Connecting block material: galvanized steel

Ball valve material: galvanized steel

Temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

We also offer a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
