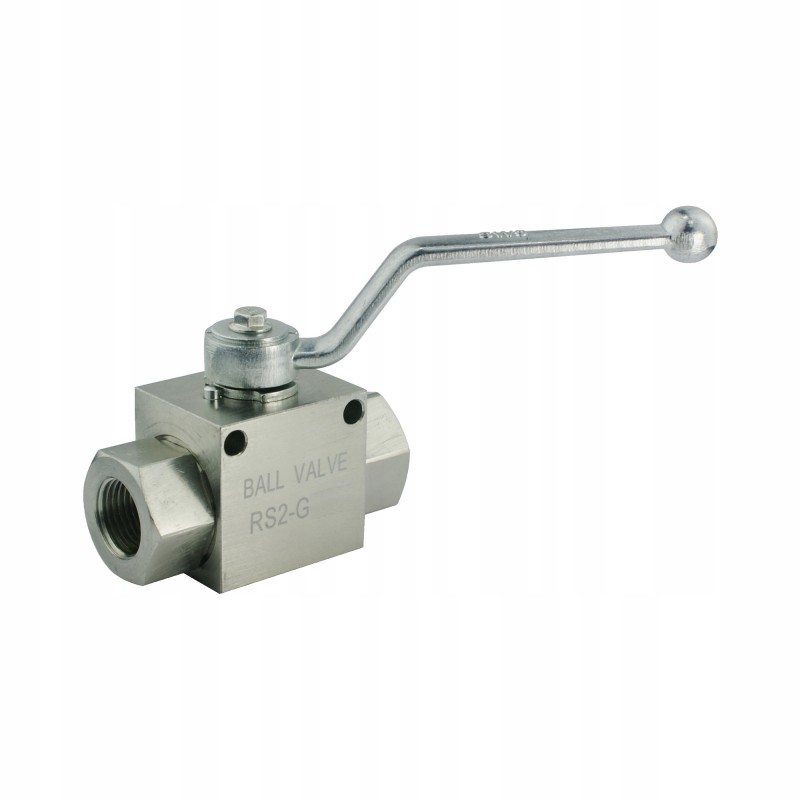

Hydraulic manual ball valve 2 2 3 4 100l

2-WAY HYDRAULIC BALL VALVE 3/4' Production:

Original product of the Hydrolider brand, symbol: RS 2 VIE 3/4', 1.35.21.016

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Principle of operation:

It has internal threads in the body, thanks to which, by screwing connections to it, you can freely derive various types of threads from it, depending on your needs.

The 'close/open' valve is used to block the oil flow on a single hydraulic line. The valve can be closed and opened even at high pressure.

Connection:

Connect A and P to the supply line where there is a need to open and close the flow.

Technical data:

Maximum flow: 100L/min

Number of hydraulic holes in the body: 2

Threads internal in the body: 3/4'' [BSP]

Body material: galvanized steel

Permissible maximum pressure: 400 bar

Weight: 1,400 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Hydraulic diagram of a 3/4' 2-way ball valve (photo):
