Elbow with locknut m12x1 5 m14x1 5 8l
  • Elbow with locknut m12x1 5 m14x1 5 8l
  • Elbow with locknut m12x1 5 m14x1 5 8l

Elbow with locknut m12x1 5 m14x1 5 8l

15010421267990
£12.50
Quantity
5 Items

Description

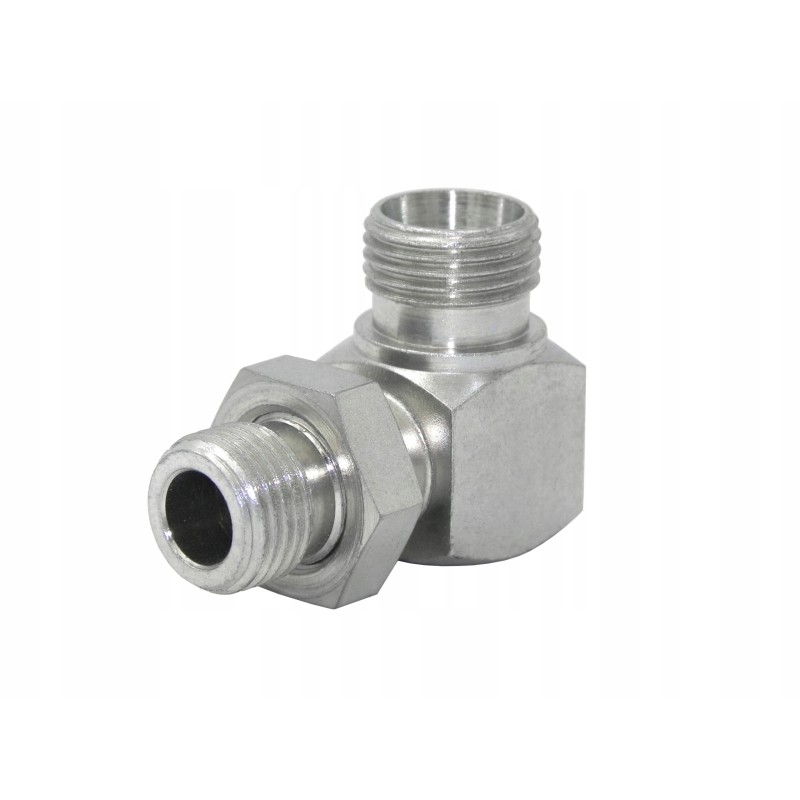

HYDRAULIC ELBOW WITH LOCK NUT M12x1.5 - M14x1.5 8LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies in set with a locknut (locknut). The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side, the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external metric 12x1. 5

Thread on the other side: external metric 14x1.5 8L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Type of fluid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of scope of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010421267990
KPN M12/14 8L
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KPN M12/14 8L
