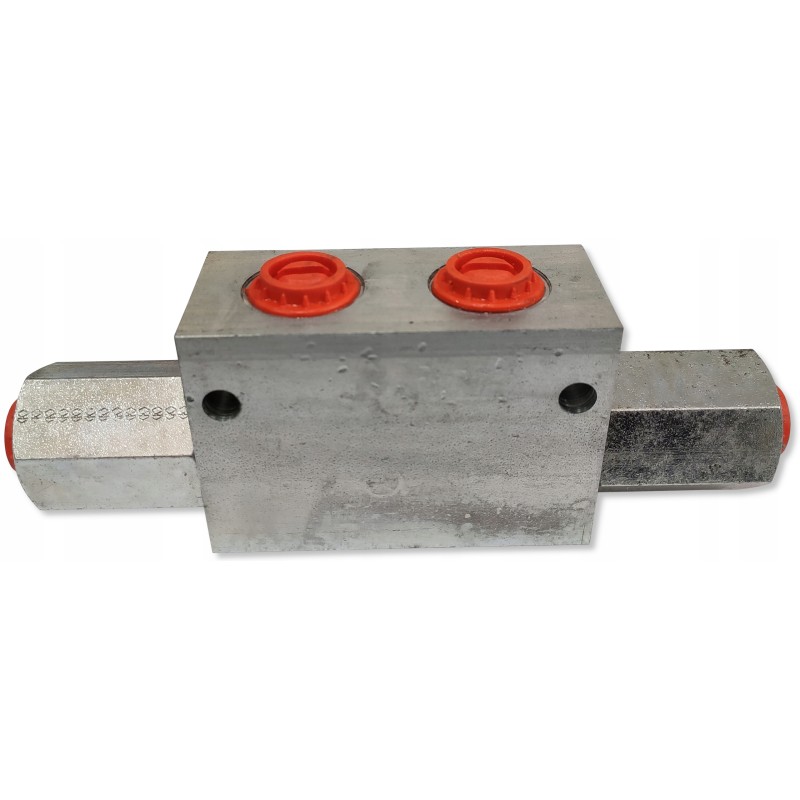

Hydraulic valve lock for cylinder 1 2 50l

Hydraulic check valve 'LOCK' VRDE 1/2'' Locking the double-acting cylinder. SKRAW-MET CODE: [0320] Solidly made. The valve is used in double-acting cylinders, it is used to block the cylinder in both directions.

The valve releases the lock in when controlling the hydraulic distributor.

The valve is used in rounds, cyclopes, forklifts, agricultural and industrial machines and other hydraulically controlled devices.

Connection: Connect V1 and V2 to the supply line (distributor) and C1 and C2 to the actuator

Technical specifications: Maximum flow: 50L/min., Internal threads in the body: 1/2' connection port, Permissible pressure: max. pressure. 350 Bar,

Permissible ambient temperature: -40'C to +60'C,

Permissible oil temperature: -15'C to +80'C,

Oil type: mineral oil-based hydraulic oil,

Material: steel body galvanized.
