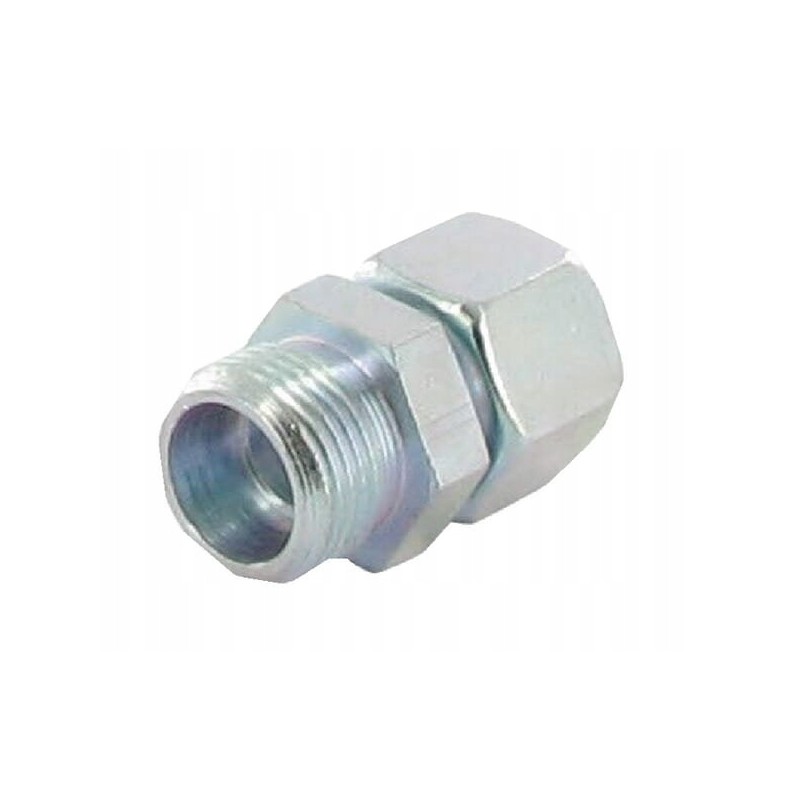

Straight connector with nut m18x1 5 12l m22x1 5 14s

Straight connector with nut M18x1.5 12L - M22x1.5 14S Parameters

Part number: KOVO12L14S

Unit: piece

Manufacturer: Dietzel

Shape: Straight - 2 sides connection

Connector type no. 1: Swivel nut

Connector type no. 1 - male/female: Female

Connector no. 1 thread diameter: M18

Surface treatment : Zinc-plated

Max. working pressure: 315 BAR

Thread pitch of connector no. 1: 1.5 mm

Series: L/S

Thread type of connector no. 1: Metric

Type of connector no. 2: Thread

Type of connector no. 2 - male/ female: Male

Connector No. 2 thread diameter [M2]: M22

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Total length: 331 mm

Pressure: PN (nominal pressure) in accordance with DIN 2401 BAR

Total length [L]: 33 +/- 2 mm mm

pipe Ø [D2]: 14 mm

pipe [D1]: 12 mm

Specifications

- Pre-assembled O-ring Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Properties

- Inside L

- Outside S

It consists of

- Main part

- Union nut

- Sealing cone with self-sealing ring Technical information

- Available on request in a stainless steel version - Viton

gasket available on request - Galvanized without CR6
