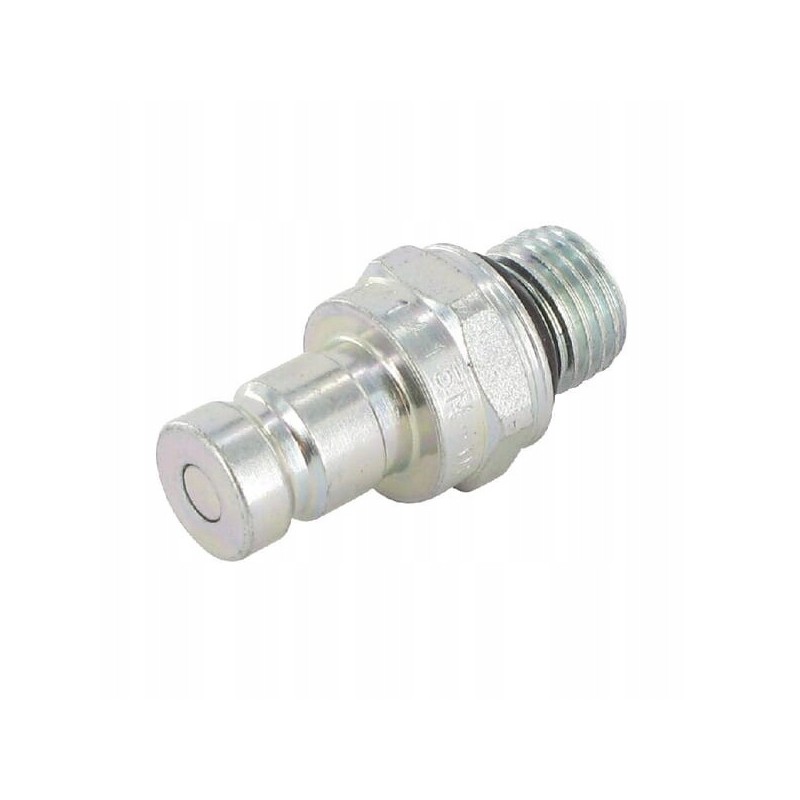

Diagnostic quick connector df plug 1 4 gw m14x1 5

DF0411415M

Material: Carbon steel

Valve type: Flat

Shape: Straight - 2 connection sides

Size: 6.3 mm

Outer diameter: 12.7 mm

ISO standard: 15171-1

Series: DF

Connection diameter: 0 .49 inch

Surface treatment: White passivated

D1: 12.7 mm

Overall length: 42 mm

Wrench size: 0.75 inch

Connector #2 thread type: Metric

Seal material: Nitrile rubber [NBR], Teflon (PTFE)

Note: To disconnect, move the locking sleeve of the coupler back.

Weight: 39.3 g

Working pressure: 420 bar

Connector type - male/female: Male

Connector type no. 2 - male/female: Male

Possibility of connection under pressure: No

Max operating temperature: 125 °C

Min working temperature: -25 °C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Connector type: Quick connector

Connector thread diameter no. 2: M14

Connector No. 2 thread pitch: 1.5 mm

Disconnection method: Sleeve offset

Connector No. 2 type: Thread
