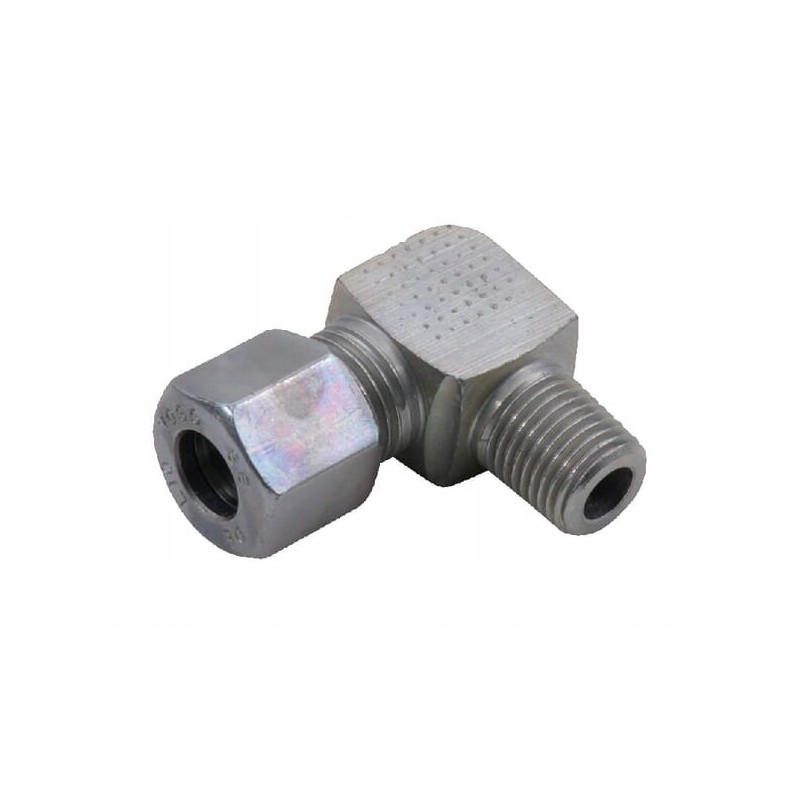

Angle threaded fitting 4ll r1 8

4LL R1/8 Angle Threaded Fitting Parameters

Part Number: WEV4LLRK18

Unit: Piece

Manufacturer: Voss

Shape: Elbow - 2 sides of the connection

Connector type no. 1 - male/female: Male

Connector thread diameter: 1/8 inch

Connector thread length: 8 mm

Connector thread type: BSP

Connector #1 wrench size: 10.0 mm

Connector #2 male/female type: Female

Connection No. 2 diameter: 4 mm

Connection No. 2 thread diameter: M8

Connection No. 2 thread pitch: 1.00 mm

Connection No. 2 thread type: Metric

Pipe diameter: 4 mm

ISO standard: 228

Angle: 90 °

Max working pressure: 100 BAR

Series: LL

Dimension from the axis of the connector to the end of the next connector

11 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
