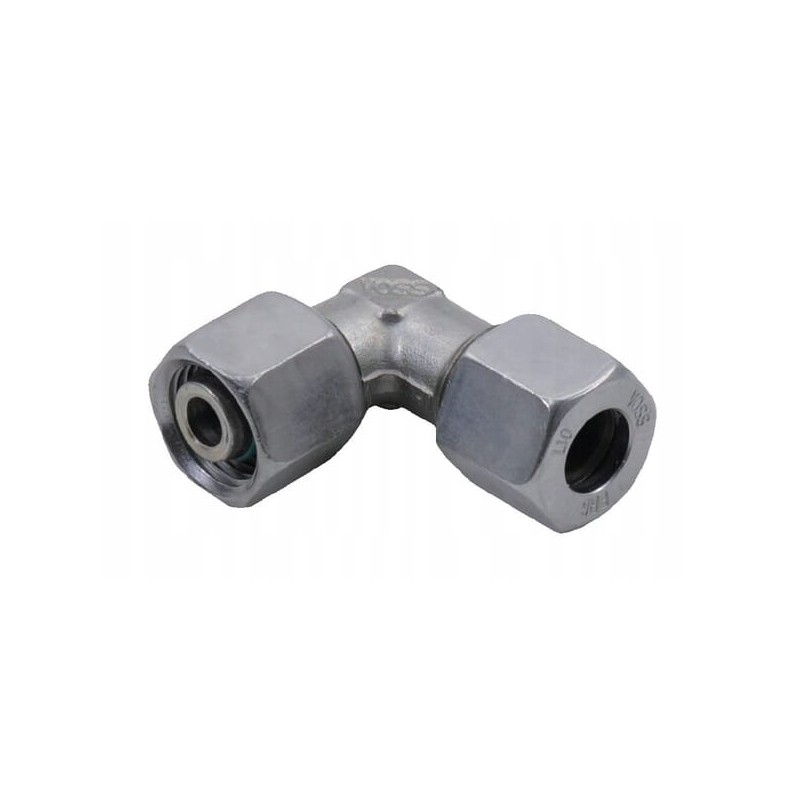

Adjustable elbow connector 10l

Adjustable elbow connector 10L Parameters

Part number: EWVD10L

Unit: Piece

Manufacturer: Voss

EAN: 8719607058025

Shape: Elbow - 2 sides connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 10 mm

Connector No. 1 Thread Diameter: M16

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 14 mm

Connector No. 1 Wrench Size: 19.0 mm

Connector No. 2 Type: Conical with Ring o-ring

Connector No. 2 Type - Male/Female: Female

Connection No. 2 Thread Diameter: 10 mm

Connector No. 2 Thread Diameter: M16

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Distance Between connectors: 30 mm

Dimension from the axis of the connector to the bottom of the next connector: 15 mm

Pipe diameter: 10 mm

DIN standard: 2401

Angle: 90 °

Max. working pressure: 315 BAR

Seal material: Nitrile rubber [NBR]

Series: L

Advantages

- Cutting ring 2S

Product details

- 2S cutting ring - Optimum connection to the cutting ring and perfect function - High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request Dimension from the axis of joint no. 2 to the end of the next joint 15mm
