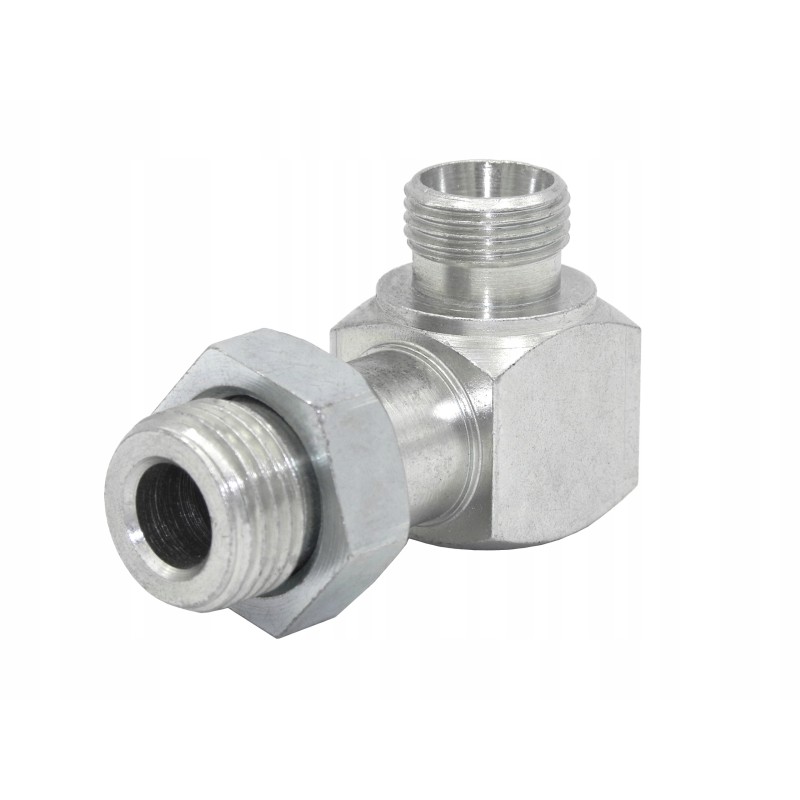

Elbow with locknut BSP 1 2 m18x1 5 12l
  • Elbow with locknut BSP 1 2 m18x1 5 12l
  • Elbow with locknut BSP 1 2 m18x1 5 12l

Elbow with locknut BSP 1 2 m18x1 5 12l

15010421313369
£17.20
Quantity
5 Items

Description
HYDRAULIC ELBOW WITH LOCK NUT BSP 1/2'' - M18x1.5 12LApplication:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Houses elbow connections in a set with a locknut (locknut). The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side, the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch BSP 1 /2''

Thread on the other side: external metric 18x1.5 12L - light standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010421313369
KPN G1/2/M18 12L
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KPN G1/2/M18 12L
