Distributor connections 6s p40 14 14 hydrolider

SET OF CONNECTIONS FOR 6-SECTION DISTRIBUTOR P40L/min BADESTNOST Production:

Original product of the Hydrolider brand, symbol: 1.10.70.310.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connections enable connection distributor with hydraulic lines.

Technical data:

1 piece = 1 set

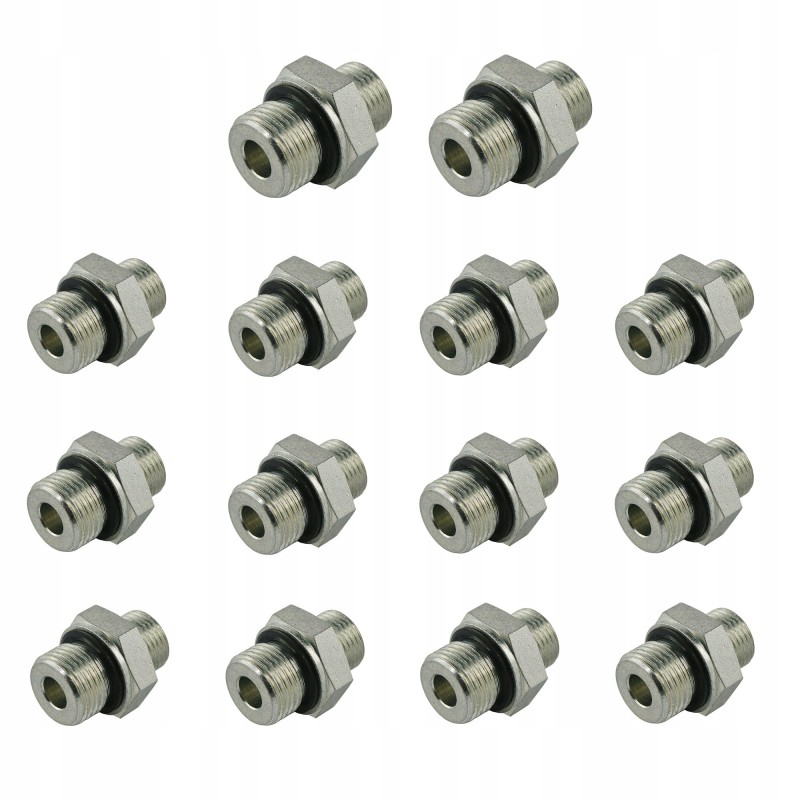

The set includes 14 connections, one for supply and return and 12 for sections. All connections in the set at the thread on the distributor side have a rubber seal. There is no need to add additional seals here.

Threads:

CONNECTION MOUNTED ON THE POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic conduit side: M14x1.5

-------- -------------------------------------------------- ---------------------------

CONNECTION MOUNTED ON THE RETURN:

Thread on the distributor side, inch BSP: 1/2'

Thread on the cable side hydraulic: M14x1.5

-------------------------------------------------------- -----------------------------------------

CONNECTIONS MOUNTED ON SECTION:

Thread from inch BSP side of the distributor: 3/8'

Thread on the hydraulic conduit side: M14x1.5

------------------------------ -------------------------------------------------- -----

Material:

body: corrosion-resistant galvanized steel

sealing: rubber

Helpful data:

M14x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 13.6 - 13.9

Inner diameter [mm]: 12.2 - 12.6

-------------------------------------- -----------------------------------------------

Thread diameter BSP 1/2' measured with a caliper:

Outer diameter [mm]: 20.5 - 20.9

Inner diameter [mm]: 18.6 - 19

--------------- -------------------------------------------------- --------------------

Thread diameter 3/8' measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm] : 14.9 - 15.4
