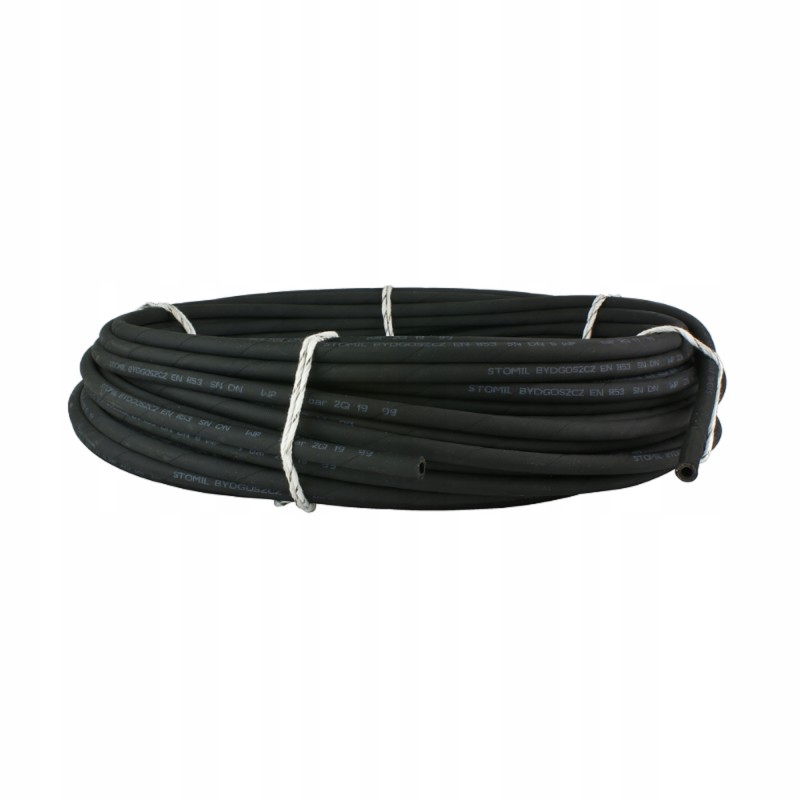

Reinforced hydraulic hose 1sn dn16 130bar stomil

STOMIL BYD HYDRAULIC HOSE. DN16 1SN 130bar 5/8 INCH 1 PIECE = 1 METER Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.01.016

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 120L/min and a pressure of up to 130bar. The hose is compatible with all fittings and sleeves from the DN16 group, which have the symbol 1SN in their symbol.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness.

Outer layer: synthetic rubber resistant to oils, fuels and difficult weather conditions.

Inner reinforcing layer: single steel cross braid.

Operating temperature range of all layers: -40°C to 100°C

Recommended nominal operating pressure max. 130bar.

The test pressure is twice the nominal pressure.

The burst pressure is four times the nominal pressure

Diameter internal passage: 16mm

Outer diameter: 24mm

Production: Polish Stomil Bydgoszcz
