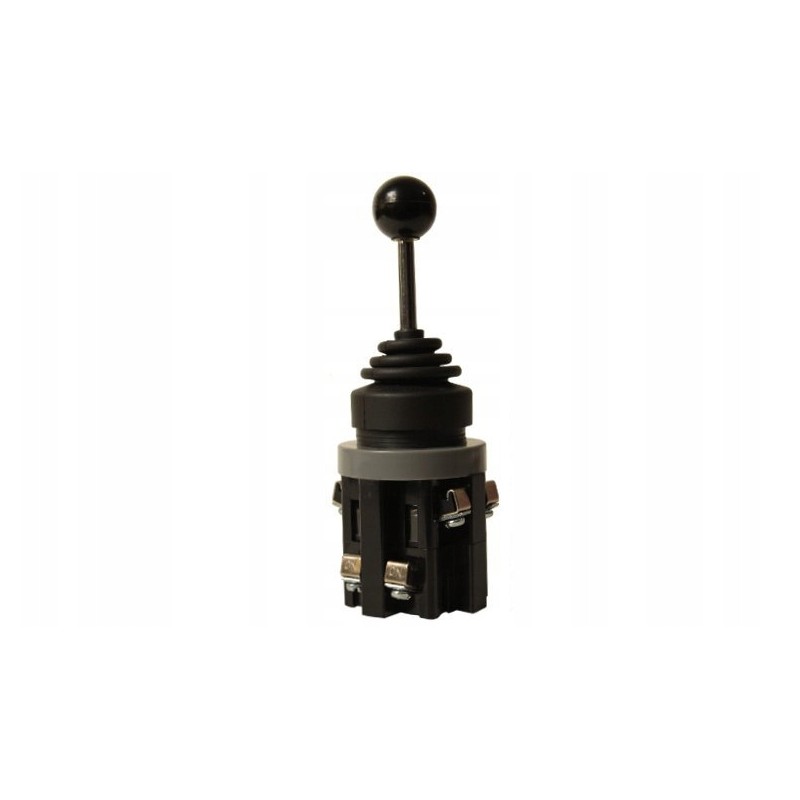

Joystick 4 positions unstable manipulator

JOYSTICK 4 UNSTABLE POSITIONS Manipulator MIZAR number: 00430

Lever manipulator

(Joystick with 4 unstable positions and a stable center position)

Designed for installation in a Ø 30 mm hole.

Installation is carried out by unscrewing the lever ball, unscrewing the ring with the cover,

inserting the joystick through the hole and screwing the ring and ball back on.

They have a rubber sealing cover that protects against dust, water and is resistant to oil.

Specification:

Number of positions: 4

Operating temperature: -20....50°C

Contact sets: 4 x NO

Dimensions: 51 x 51 x ....mm

Lever material: Steel

Operating method: Monostable

Load capacity of AC contacts : 6A / 250V (with resistive load)

Load capacity of DC contacts : 2.2A / 110V (with resistive load)

Insulation resistance min. : 100MΩ

Test voltage: 2.2kV

Mechanical durability: 5*105 cycles

Electrical durability: 5*105 cycles

MIZAR number: 00430
