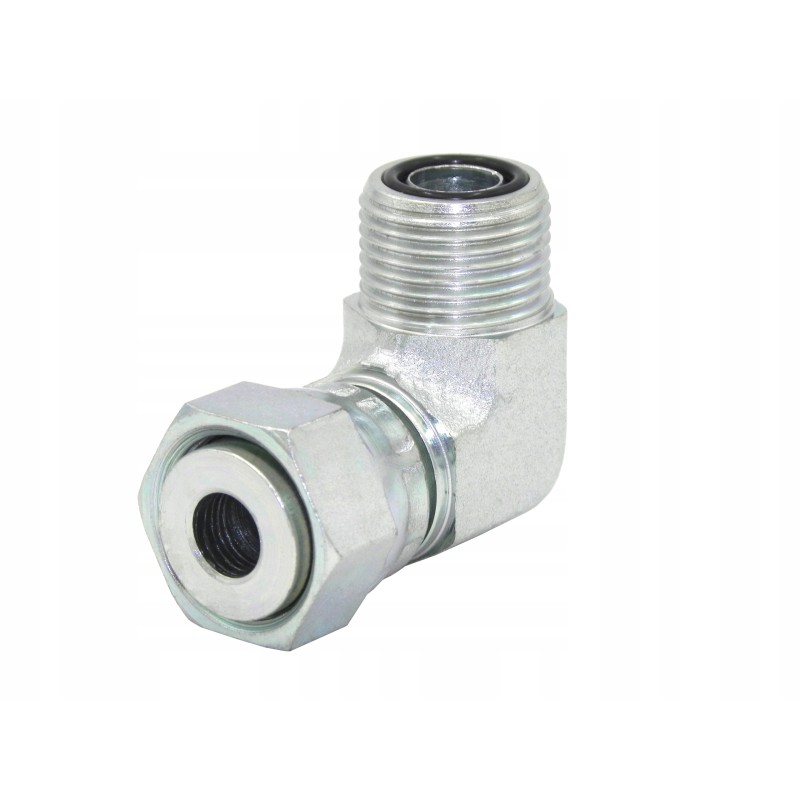

HYDRAULIC ELBOW CONNECTOR WITH ORFS NUT 1'' Application:
Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
Elbow connector with conical self-sealing clamping when tightening. Designed to connect two hydraulic hoses or to connect with other connectors with the same cone system.
Technical data:
Thread on one side: external inch ORFS 1''
Thread on the other side: internal inch ORFS 1''
Nominal pressure: 180bar
Maximum pressure: 230 bar
Type of liquid: hydraulic oil
Material:
weldable, galvanized steel, corrosion-resistant
Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
