Hydraulic elbow 45 unf 7 8 with nut
  • Hydraulic elbow 45 unf 7 8 with nut
  • Hydraulic elbow 45 unf 7 8 with nut

Hydraulic elbow 45 unf 7 8 with nut

15010425635737
£22.35
Quantity
5 Items

Description

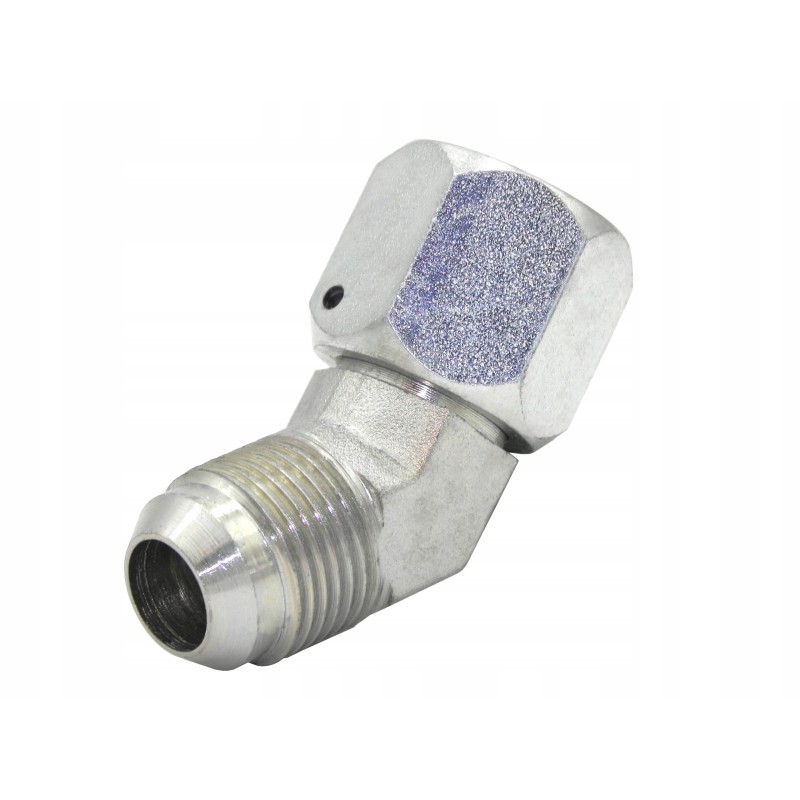

HYDRAULIC ELBOW 45° UNF 7/8'' WITH NUT Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connector with conical clamping self-sealing when tightening. Designed to connect two hydraulic hoses or to connect with other connectors with the same cone system.

Technical data:

Thread on one side: external inch UNF 7/8''

Thread on the other side: internal inch UNF 7/8''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010425635737
KN U7/8 45
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KN U7/8 45
