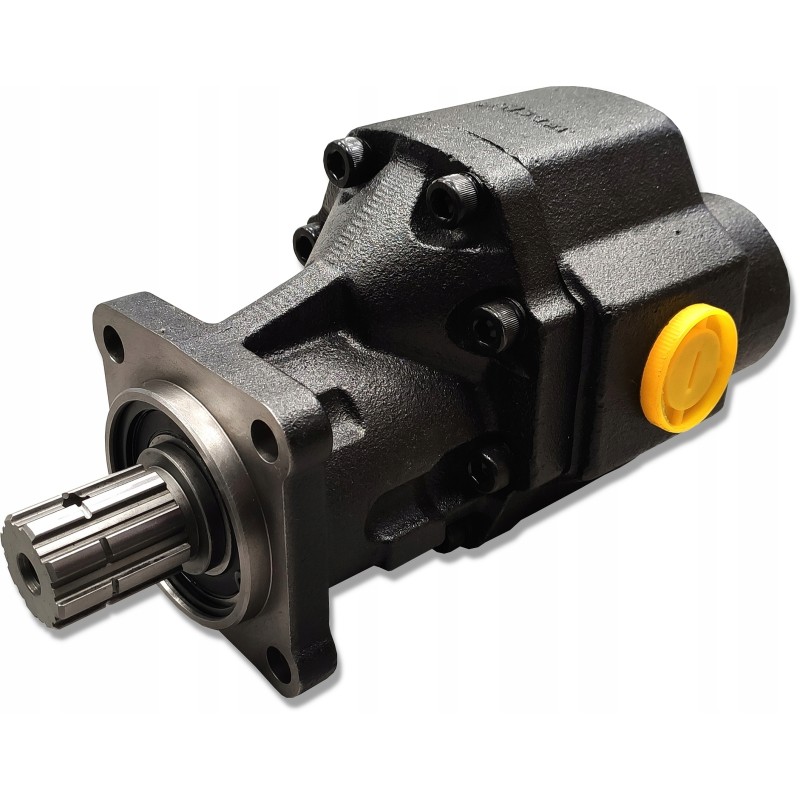

Solid gear pump 40cm3 max 78l min car tow truck

TWO-WAY HYDRAULIC PUMP 40cm3/rev SKRAW-MET CODE: [2626]Gear hydraulic pump is a durable and reliable source of power in power hydraulics for vehicles. Any direction of rotation, relative insensitivity to contamination, excellent bearings and double seals make them one of the most durable pumps on the market.

We recommend purchasing better parts that will extend the life of the device and reduce the risk of damage and uncontrolled stops.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted mainly to work in car trailers, but also in agricultural machines, tractors, construction machines, industrial machines, etc.

Technical specification:Pump capacity: 40 cm3/rev

Pump capacity with multiplier - ratio 1:3.8:Efficiency at 1600 tractor revolutions (MAX): 78L/min

Efficiency at 1000 tractor revolutions: 49L/min

Max. number of revolutions (1/min): 2000

Min. number of revolutions (1/min): 500

2 - directional: YES

Propeller shaft journal: B8×32×36 ISO 14:1982 (DIN 5462)

Connection threads:Suction connection: G3/4' internal thread (according to BSPP³)

Discharge connection: G3/4' internal thread (according to BSPP³)

Maximum working pressure ( continuous): 250 bar

Material: Cast iron

Features and advantages:Gear pumps made of aluminum alloy and cast iron body and rear covers,

High volumetric efficiency thanks to innovative design and precise control of machining tolerances,

Small dimensions,

Significantly reduced noise level,

High rotational speeds,

Compensation axial is achieved using movable sleeves which enable high volumetric efficiency over the entire pressure range,

Double shaft seals,

All pumps are tested after installation and run-in to ensure a high standard and high durability
