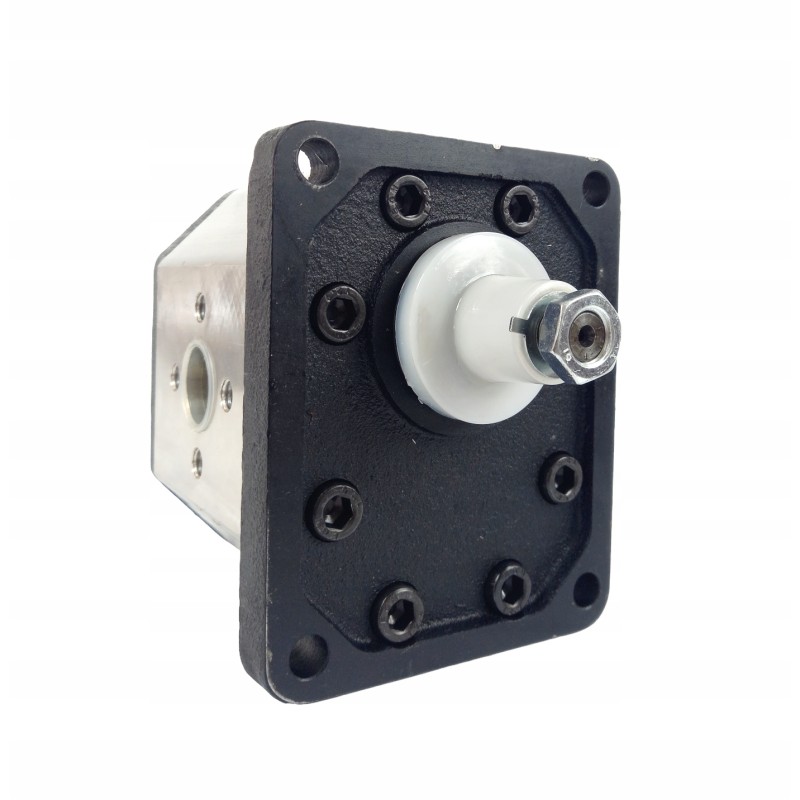

Gear pump 63 cm3 gr3 for forestry machines

Direction of rotation: right

Diamond connection hole spacing (opposite each other):

3/4' - 40mm ->, discharge side

1' - 51mm ->, suction side

We have flange connections necessary to connect this pump with hydraulic lines on other auctions.

Pressure in continuous operation: 180 bar

Pressure in momentary operation: 230 bar

Efficiency 63 cm3/rev. i.e. at maximum speed it can reach 176 L/min.

63 cm3 at 1500 rpm. is 94 L/min.

At e.g. 2500 rpm. it will be 157 L/min.

Maximum revolutions: 2800 rpm.

Pump made of aluminum alloy. Covers made of cast iron.

We have pump couplings and connectors on other auctions.

Speed range: 500 - 2800 (rpm).

The pump has a shaft conical 1:8 with a wedge.

It has a wide range of applications in the agricultural, construction and industrial sectors. The high quality of the materials from which the pump is built guarantees efficient operation of the system for a long time.

Spacing of mounting holes in the pump: 98.5 x 128 mm.

The pump also fits multipliers /gears mounted on the PTO shaft increasing the revolutions from our offer.
