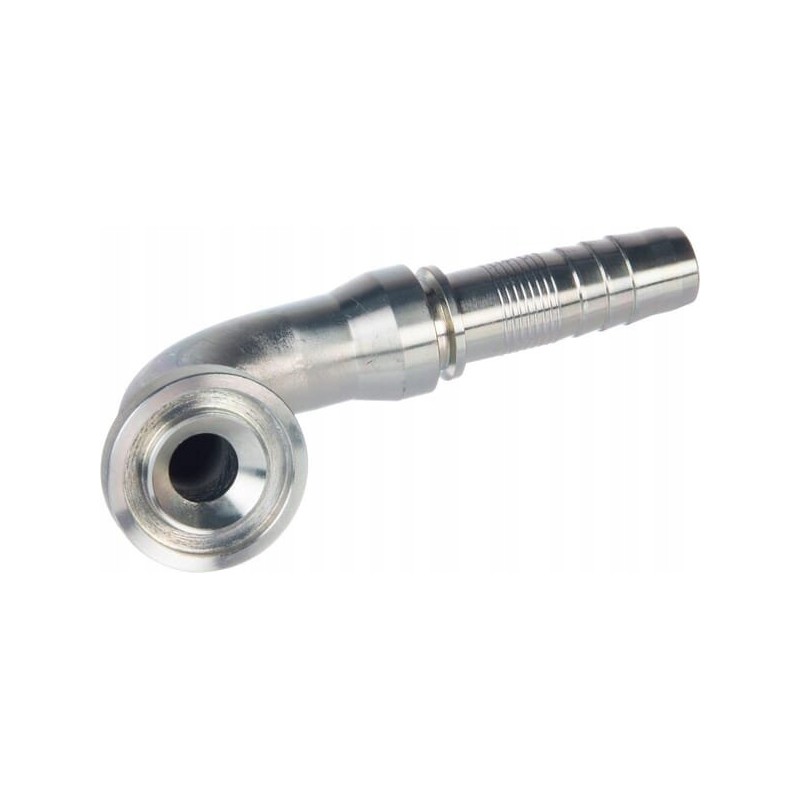

Hose end sfl ns with flange 90 3000 dn20 38

SFL-NS hose end with flange 90° 3000, DN20 38.1 mm Parameters

Part Number: SFLNS201290

Unit: Piece

Manufacturer: Alfagomma

Shape: Elbow - 2 Sides Connection

Connector Type #1: Flange

Connector Type #1 - Male/Female: Male

Connector #1 Diameter: 3/4 inch

Length Connector No. 1: 81 mm

Connector Type No. 2: Hose Barb

Connector Type No. 2 - Male/Female: Male

Connection Diameter No. 2: 3/4 inch

Flange OD: 38.1 mm

PSI Series Flange : 3000

Angle: 90 °

Working pressure max.: 345 BAR

OE reference number: H1343390-121200

Product description

Alfagomma No-Skive compression fittings (NS type) are designed for use with Alfabiotech high-pressure hoses.

Advantages

- Compression fittings enable quicker and easier crimping of hoses, helping to save costs.

- During this process, less pollution, waste and unpleasant odors are produced.

- No special tools are needed for cutting hoses.

Product details

- Alfagomma No-Skive compression fittings are used for Alfabiotech high-pressure hoses.

- Thanks to the use of these tips, there is no need to cut the outer and inner layers of the hose.

Dimension from the axis of the joint to the end of the next joint 92mm
