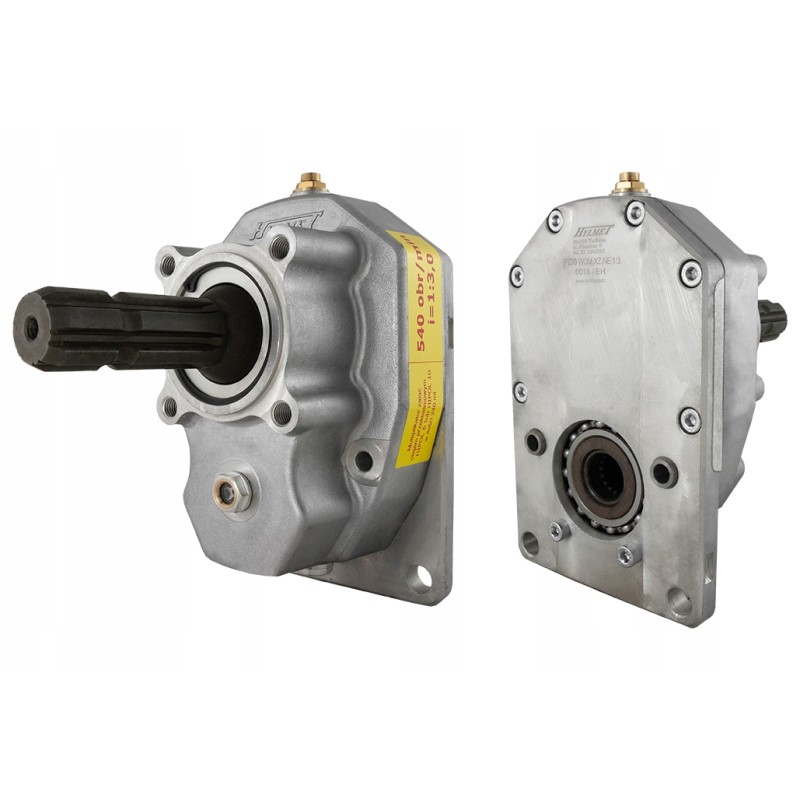

Reinforced PTO gear ML52 male shaft

MULTIPLICATOR (replacement of ML52) with a power of 30kW HYLMET FOR GEAR PUMPS FROM THE PZ30-WOMPZ30-PTO.XZ.NE SERIES 1:3 Durable, failure-free gear that you can rely on for years. The product is 100% Polish manufactured.

The gear is based on helical teeth, guaranteeing quiet and comfortable operation (-15dB*) and high transmitted power (+50%*).

Multipliers of this type are used in hydraulic systems intended for agriculture and forestry and small orchard tractors (compact dimensions). They are ideal wherever the hydraulic capacity is too low.

HYLMET gears are ideal for heavy-duty applications thanks to their thick, solid housing (minimum thickness 7 mm) and as many as 7 bearings.

The multiplier has standard mounting holes around the shaft and two additional holes thanks to which there is no need to install additional accessories such as a driver.

.

* compared to Chinese gears, ' Italian' with a ratio of 1:3.8 max 20 kW.

FREE!! FREE gear oil!! Technical data: Multiplier power: 30 kW (guaranteed)

Gear ratio: 1:3.0

input revolutions: 540

revolutions at the output: 1620

max torque at the input 530 Nm

max torque at the output 175 Nm

Possibility of installing PZ30-PTO series pumps:

bolt spacing 100 mm

Pump flange diameter:

71 mm

PTO shaft: 1' 3/8 DIN9611 - 6 cutters

Compact dimensions (15x25.2 cm) guarantee installation in any type of tractor.

The PZ30-PTO gearbox is equivalent to the ML52 gearbox.

Comparison of both gearboxes with a 35cm3/rev pump

The HYLMET gearbox can work at a pressure of 320 bar

The imported gearbox can work at a pressure of 170 bar

Comparing to work at a pressure of 200 bar

efficiency 90 l/min will be obtained with the HYLMET gear

capacity of 60 l/min will be obtained with the imported gear
