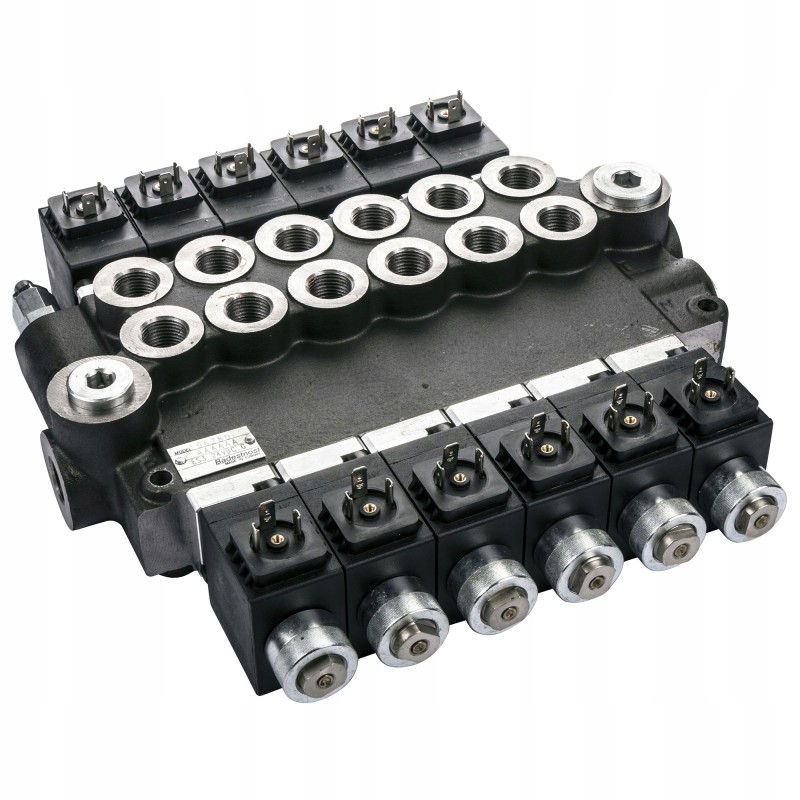

Hydraulic distributor, 6 sections, 80l, 12v electric

6-section hydraulic distributor, electrically controlled, 80l 12V MIZAR number: 48740

6-section monoblock hydraulic distributor with a parallel system, electrically controlled.

Widely used in hydraulic systems in construction and agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other controlled devices hydraulically.

Temp. operation: 15 / +80°C

Capacity 80L/ min

Voltage: 12V DC

Power: 37W

Monoblock valve with cast steel

Internal threads in the body:

Supply connection port: 1/2''

Return connection port: 3/4''

Connection ports sections: 1/2''

Number of sections: 6

PRESSURE RANGE:

Maximum supply pressure: 200Bar

Maximum pressure on the return: 25Bar

Maximum pressure on the sections: 200Bar

Overflow valve factory set to 175Bar

Manifold high-quality. Made in Bulgaria.

MIZAR number: 48740
