Hydraulic hose 275bar m22x1 5 1000mm cyclops

Hydraulic hose 275bar M22x1.5 1000mm Cyklop Waryński MIZAR number: 57890

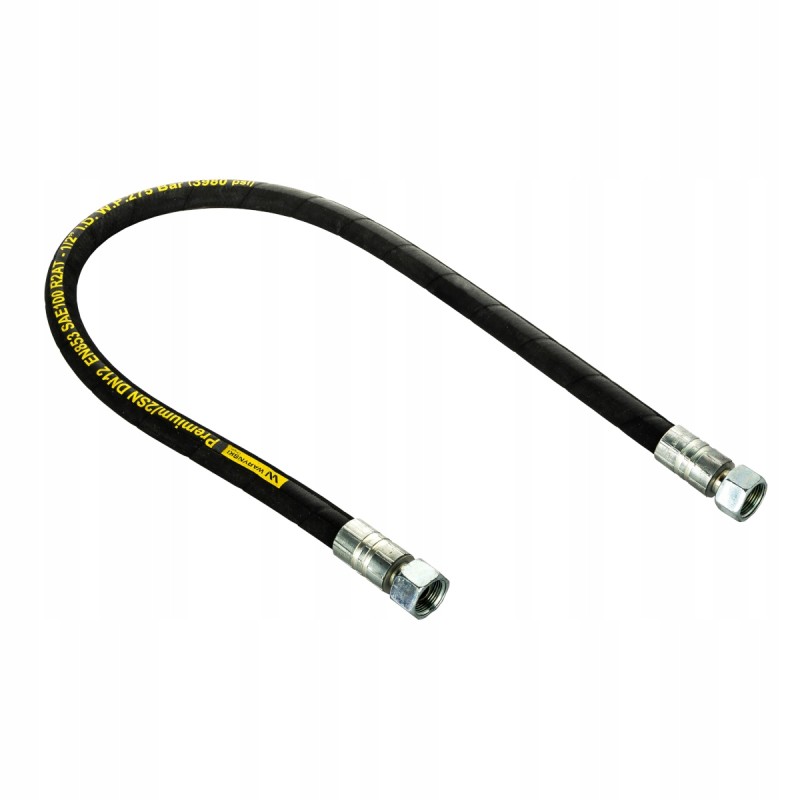

Hydraulic hose 275bar M22x1.5 1000mm Cyklop Waryński

Application: Cyclops

Waryński hydraulic hose 275 bar (27.5MPa) - flexible, multi-functional forged hose reinforced with a double steel wire braid.

Tested with pulsation pressure (medium: hydraulic oil).

The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system.

All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.

Specification:

Thread 1: Straight/nut M22x1.5

Thread 2: Straight/nut M22x1.5 (flat)

Total length: 1000mm

Working pressure: 27.5 Mpa / 275 bar

Inner diameter: 12.5 mm

Number of braids : 2

Operating temperature: from -40°C to +100°C

Inner layer: Black rubber made of synthetic rubber, resistant to oil and water Outer layer: Black rubber made of synthetic rubber, resistant to abrasion, oil, weather conditions and ozone

MIZAR number: 57890
