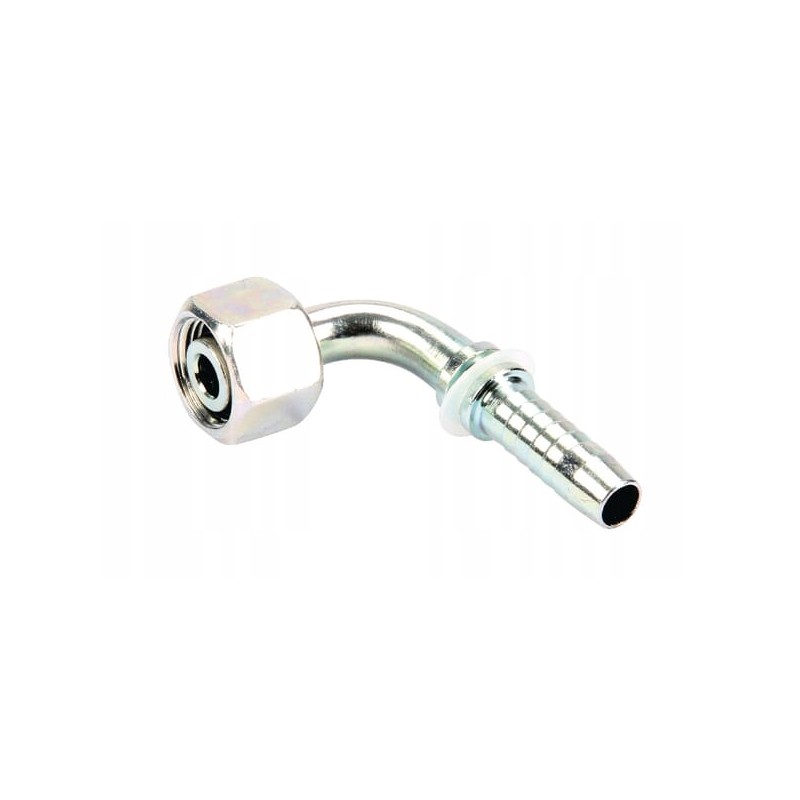

End cap dn10 m22x1 5 15l 90

Tip DN10-M22x1.5-15L-90°

Part number: PGLO102290

EAN: 8716106441389

Unit: Piece

Details product:

Cone, conical seal with O-ring

L series clipping ring connection

Includes:

Fittings

O-ring

Cone angle: 24°

Shape: Elbow - 2 sides

Connector type no. 1: Conical< p>

Type of connector no. 1 - male/female: Female

Type of connector no. 1 - code: DKOL

F1 Thread diameter of connector no. 1: M22

Thread Pitch of Connector No. 1: 1.50mm

CH1 Wrench Size for Connector No. 1: 27.0mm

Type of Connector No. 2: Hose Barb

Connector Type No. 2 - Male/Female: Male

Diameter of Connection No. 2: 3/8inch

Diameter of Connection No. 2: 10mm

CDimension from the axis of the connector to the bottom of the next connectors: 35.8mm

Dimension from the axis of connector no. 2 to the end of the next connector: 38.5mm

Angle: 90°

Material: Steel

Surface treatment:

Galvanized

White passivated

Series: 15L

OE reference number: H1221593-062200< p>

Connection: xx

Material: Steel

Series: 15L

Type: DKOL
