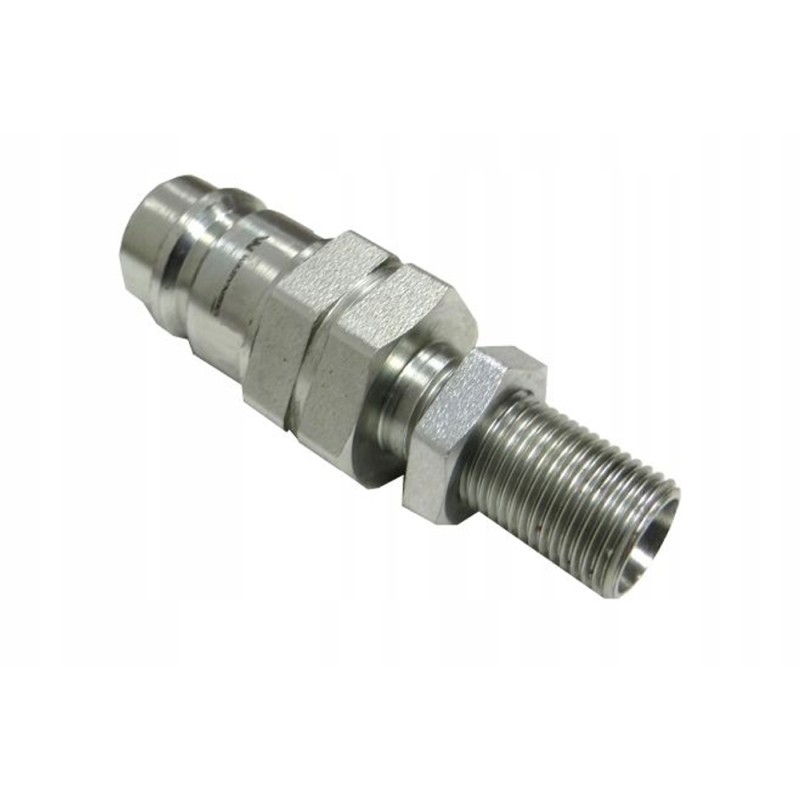

Hydraulic quick connector, long plug m16x1 5 external

HYDRAULIC QUICK CONNECTOR LONG PLUG M16X1.5 EXTERNAL EURO THREAD (9100816W) (ISO 7241-A) WARYŃSKI HYDRAULIC QUICK CONNECTOR LONG PLUG M16X1.5 EXTERNAL THREAD EURO (9100816W) (ISO 7241) -A) WARYŃSKI Waryński hydraulic quick connector - EURO plug (long). The most popular hydraulic quick connectors with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: External M16x1.5 (long with locknut)

*Standard: (EURO), ISO-7241-A (ISO-A)

*Type: Plug

*Cone - 10L (10mm )

*Max. operating pressure: 25.0 Mpa / 250 bar

* Operating temperature: from -25°C to +120°C

* Fits sockets: WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP, WIAM18MZL-PP, WIAM22MZ-PP, WIAM 22MZL-PP, WIAM20MZ- PP, 9100822G, 9100822GL, 9100818G, 9100818GL, 9100816GL, 9100814G, 9100816G, 9100820G

*Fits cover: RM-WTYK12Z

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.

WIAM14MZ WIAM16MZ WIAM16MZL WIAM18MZ WIAM18MZL WIAM22MZ WIAM22MZL WIAR12MW WIAM14MZ-PP WIAM16MZ-PP WIAM16MZL-PP WIAM18MZ-PP WIAM18MZL-PP WIAM2 2MZ-PP WIAM22MZL-PP WIAM20MZ -PP 9100822G 9100822GL 9100818G 9100818GL 9100816GL 9100814G 9100816G 9100820G,RM-WTYK12Z

* Producer: Waryński
