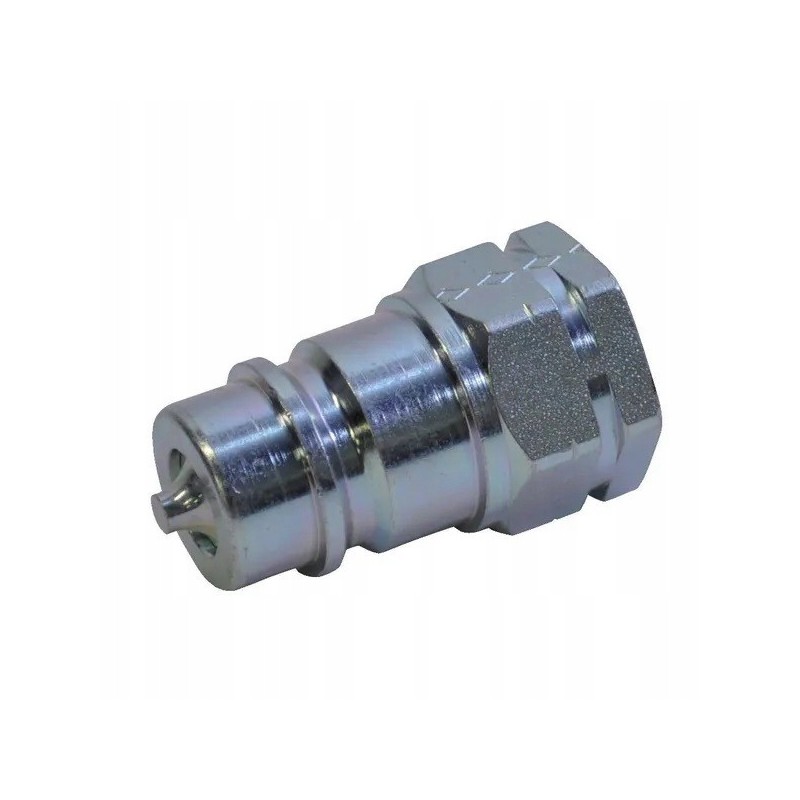

Quick connector ISO 12 5 female thread 1 2 BSP plug

Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil-based fluids

Properties

Standard agricultural connector

Push to connecta

Shape Straight - 2 sides of connection Size (code) BG 3 Size 1/2 inch Connector type no. 1 Quick connector Connector type no. 1 - male/female Male OD1Connection diameter 20.5 mm Connector type No. 2 Thread Connector type No. 2 - male/female Female AThread diameter of connector No. 2 1/2 inch Number of turns per inch of thread of connector No. 2 14 Thread type of connector No. 2 BSP Possibility of connection under pressure No ISO 7241-1-A standard Outer diameter 38 mm L1 Total length 48 mm Surface treatment White passivated Working pressure 250 BAR Working temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type plug
