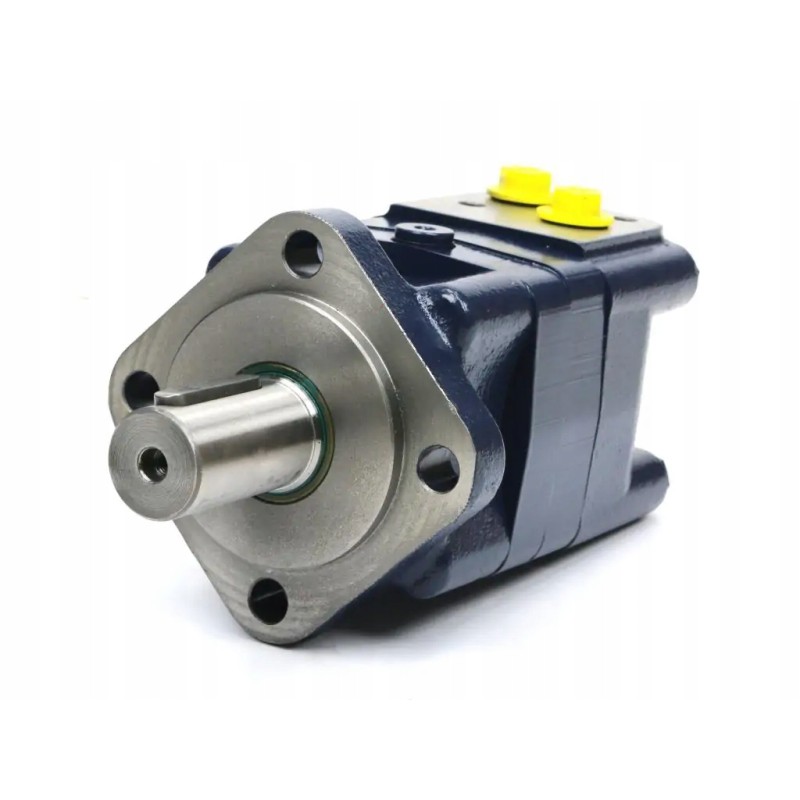

WMS orbital hydraulic motor 80 cm3 rpm 175

WMS orbital hydraulic motor 80 cm3/rev (175 bar / max. 225 bar) Waryński Index WMS-80 Absorbency: 80.5

Shaft diameter: O32

Drain connection thread: 1/ 4' BSP'

Connection threads: 1/2' BSP'

Max. working pressure: 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine)

Max. Instantaneous pressure: 22.5 MPa (225 bar) - Note : maximum 1 second / 1 minute of engine operation (exceeding these parameters may result in immediate engine damage)

Max. Nominal pressure: 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure

Max output power: 14

Max torque: 218

Max nominal torque: 194

Max nominal speed: 805

Max. Working fluid flow: 65

WMS orbital hydraulic motor 80 cm3/rev (175 bar / max. 200 bar / max. instantaneous 225 bar) Waryński. WMS series motors are characterized by compact design, high torque and high absorbency. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. The reinforced shaft seal allows both series and parallel motor connections. In order to achieve a longer service life, it is recommended that optimal operating conditions be at the level of 1/3 to 2/3 of the maximum parameters.

EAN 5902287199277

Waryński
