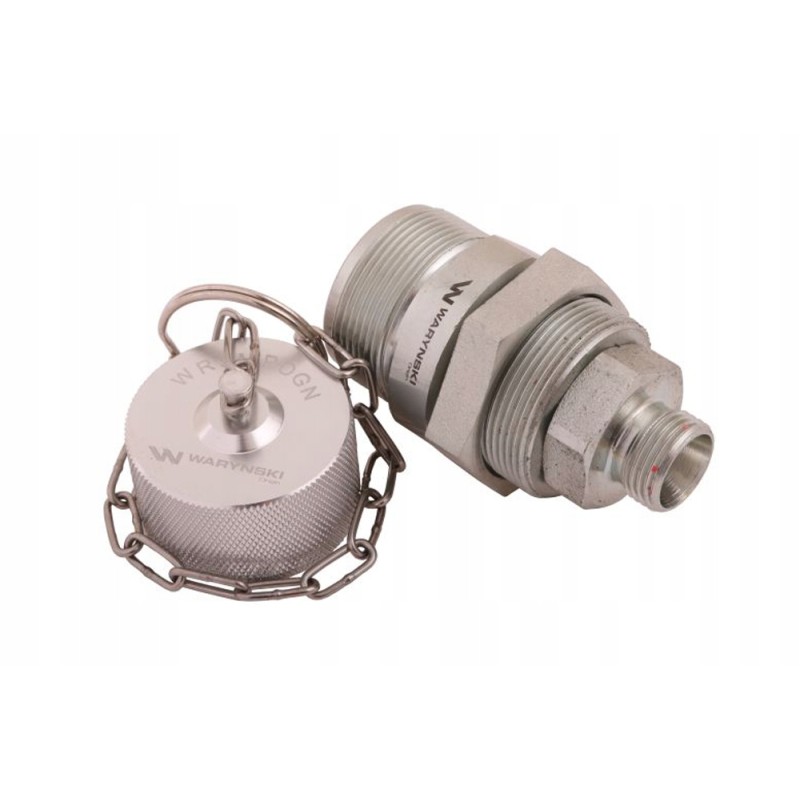

Bizon M18x1 5 screwed valve seat set

Set - Nest (bison) valve M18x1.5 Twisted (USSR6160101) with a threaded lid/aluminum cover of WaryńkomPlet - nest valve (bizon) M18x1.5 twisted (USSR6160101) with a threaded lid/aluminum cover - nest (Bizon) M18x valve 1. 5 screwed (ZSR6160101) with threaded aluminum cover/cover Waryński. The most popular old-type hydraulic valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. Aluminum cover (plug) with internal thread and chain perfectly fits screw-on valves - WRS Waryński series seats. Protects the quick coupler and hydraulic system against all types of dirt during operation.

*Parameters:

*Thread: External M18x1.5

*Type: Socket - Screwed agricultural + Aluminum cover with chain for WRS series plugs Waryński​​​​​​​

*Cone - thread: 12L (12mm)​​​​​​​

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WRSM22WT, WRSM18WT, WRSM20WT, WRSM22WEWWT, WRSM22WT-KP, WRSM18WT-KP

-️ Application:

Screwed quick couplings (valves) used in agricultural machines. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. Aluminum cover (plug) with internal thread and chain protects the quick coupler and hydraulic system against all types of dirt during operation. ,WRSM22WT

​​​​​​​WRSM18WT WRSM20WT WRSM22WEWWT WRSM22WT-KP WRSM18WT-KP

* Producer: Waryński
