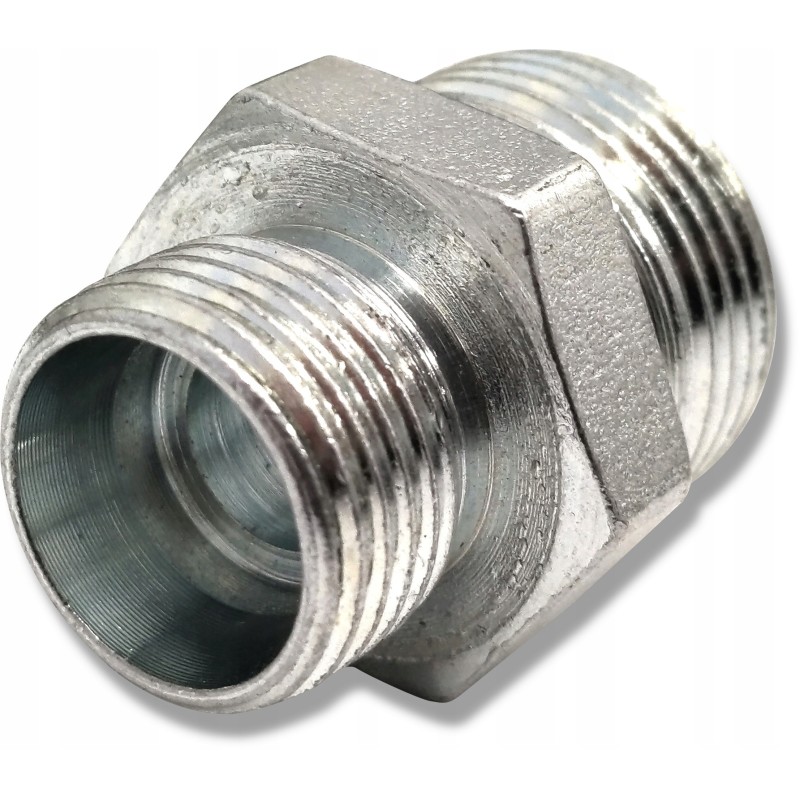

Straight hydraulic reduction, nipple 3 4 1 2

STRAIGHT HYDRAULIC REDUCTION Nipple 3/4' - 1/2' SKRAW-MET CODE: [2966] Attention! Illustrative photos! The actual proportions of the offered connection may vary! In the specifications below, you will find detailed information about the product!

Application:

Hydraulic reduction is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is used to connect the main components in the hydraulic system with hydraulic lines.

It is responsible for connecting the hydraulic line or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 45.5mm< p>

Nominal diameter of the passage: 12mm

M1 thread on the cable side: external 3/4'

M2 thread on the cable side: external 1/2'

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material :

weldable steel, galvanized, corrosion-resistant
