8 sections hydraulic distributor for forestry machines

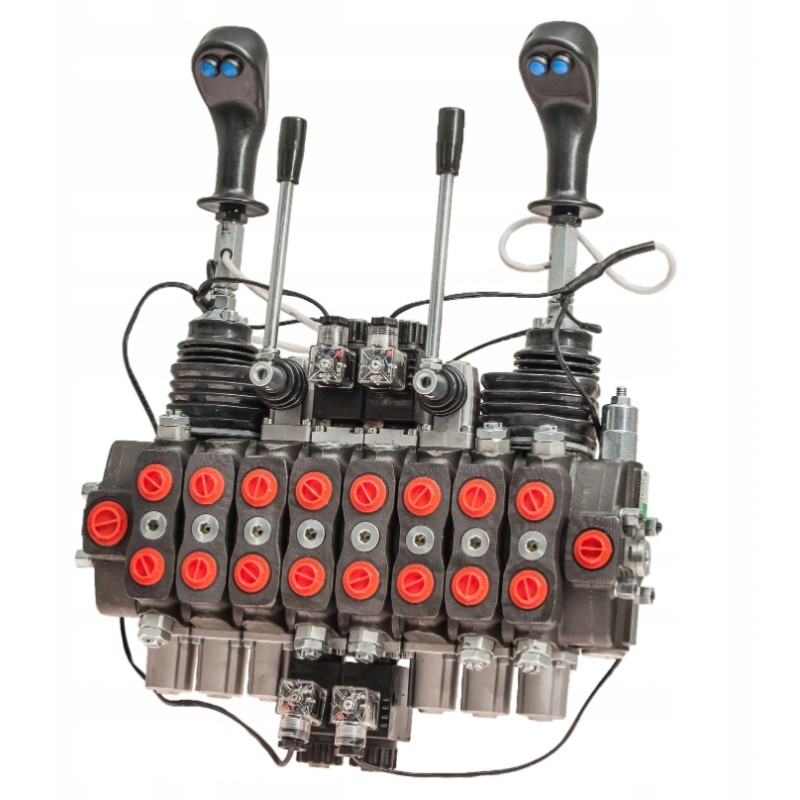

8-section hydraulic distributor, configuration as in the picture, i.e. 2 electric joysticks with two buttons each + 2 control levers.

Electrical functions control the telescoping function of the crane and the ON-OFF grab using 2 buttons on each joystick .

Number of working sections: 8

Connections:

BSP 1/2' supply,

BSP 3/4' return.

sections: 1/2'.

Maximum working pressure 300 bar.

Oil flow: 90 L/min.

Product it is recommended for controlling, for example, forestry machines, trailers, cranes, agricultural, construction and other machines. It is used to control, for example, double-acting actuators.

A wide range of spare parts for the distributor and their availability enable further modifications or expansion of the system and trouble-free service.

The distributor has an open scheme, while not we control no section, the oil flows freely through the distributor to the return channel (T).

Each lever and joystick is on a spring, which means that when the operator does not hold the lever, they return to the vertical by themselves.

On the product there is a warranty.

Example control: eight double-acting actuators.
