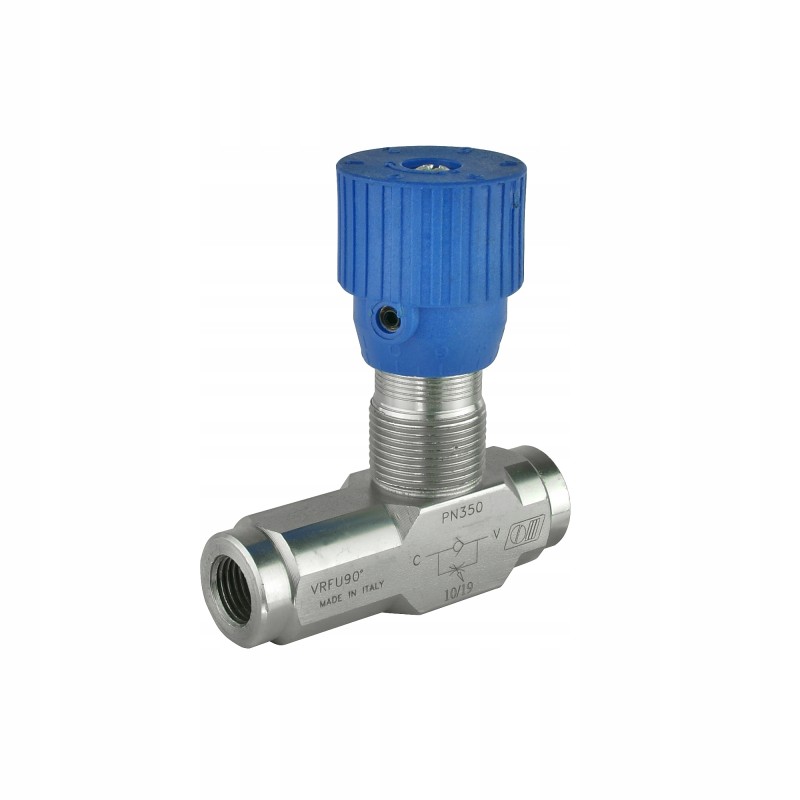

Hydraulic throttling valve in 1 side vrfu 3 8 30l

VRFU 90 3/8' HYDRAULIC VALVE, ONE-WAY CHOKE, WITH REGULATION Production:

Original Italian product of the Oleodinamica Marchesini brand, symbol: VRFU 90° 3/8', 1.35.03.010

Application:

Widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

Principle of operation:

The throttling valve regulates (throttles) the flow in one direction, while the flow is always free in the other direction. The adjusted flow depends on the change in oil pressure in the system. Adjustment is made using a knob, the settings can be secured with a locking screw.

Connection:

The flow from C to V is regulated, from V to C is always free.

Technical data:

Maximum flow: 30 l/min

Number of holes hydraulics in the body: 2

Internal threads in the body: 3/8'' [BSP]

Body material: galvanized steel

Adjusting knob material: plastic

Permissible maximum pressure: 350bar

Weight: 0.420 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil

Hydraulic diagram of the VRFU 90° valve (photo):
