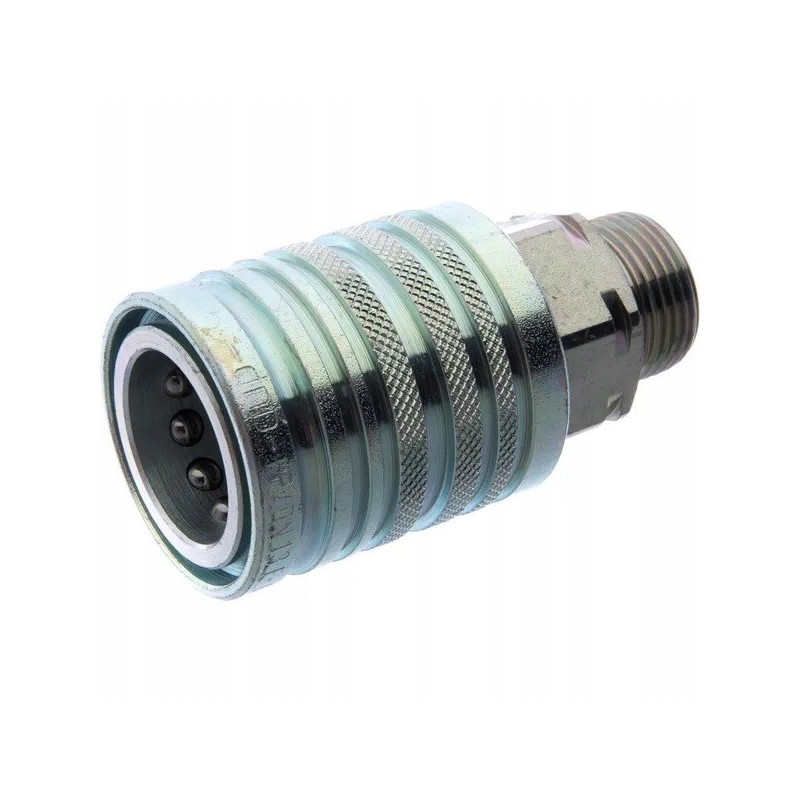

Quick connector iso 12 5 m22x1 5 15l socket

Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids Properties

Standard agricultural connector

Push & Pull principle

Tear-off function

With cut-off on both sides Axial actuation of the locking sleeve in both directions (double acting). Shape Straight - 2 sides of the connection Size (code) BG 3 Connector type No. 1 Quick connector Connector type No. 1 - male/female Male Connection diameter 20.5 mm Connector type No. 2 Thread Connection diameter No. 2 15 mm Connection thread diameter No. 2 M22 Pitch thread of connection no. 2 1.50 mm Type of thread of connection no. 2 Metric Possibility of connection under pressure No Standard ISO 7241-1-A Outer diameter 38 mm Total length 71 mm Surface treatment Passivated white Working pressure 250 BAR Working temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type socket
