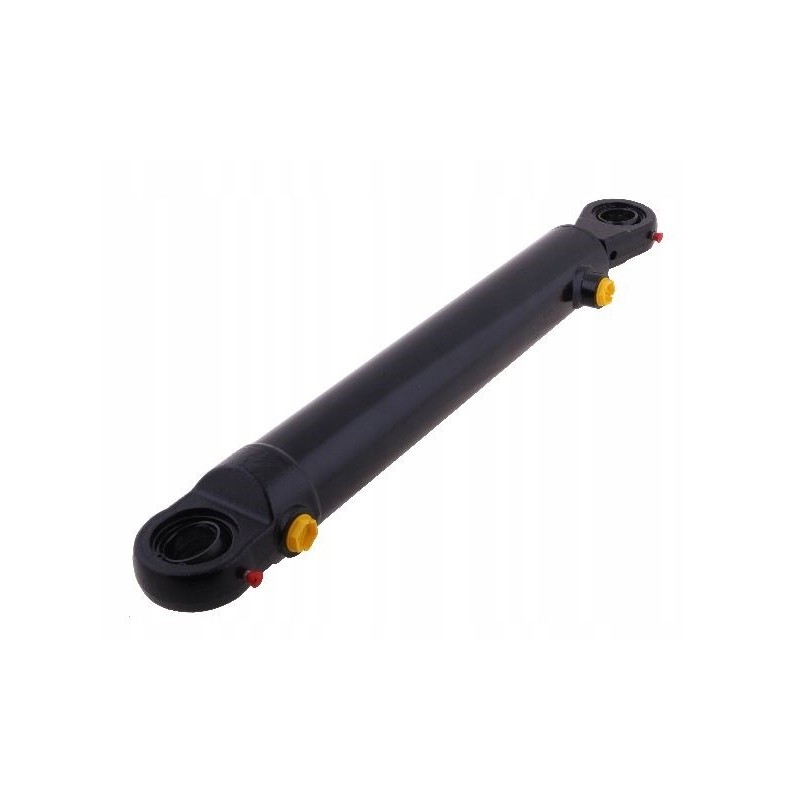

Double-sided actuator tur gripper 602 922 Warynski

HYDRAULIC CYLINDER 7210120053. CJ2*63/36*320Z+KT2 TUR WARYŃSKI GRAPPLE Hydraulic cylinder double-acting cylinder TUR Waryński gripper Parameters:

*Type: double-acting

*Ears (hole) : Ø35mm

*Input 1: M22x1.5 internal thread

*Input 2: M22x1.5 internal thread

*Stroke: 320mm

*Dimension after folding: 602mm

*Dimension after unfolding: 922mm

*Piston rod (rod): Ø36mm

*Steel pipe. (external dimension): Ø73mm

*Pressure (range): 16-32 Mpa (160-320 bar)

*Recommended working medium: according to PN-C-96057-04 :1991, ISO 6743/4, cat HVLP/HV

*Required filtering accuracy: ≤25µm

*Operating temperature range: `-30°C to +80°C

* Application: Hydraulic cylinders are widely used in agriculture, industry and construction. Fits: Tur, grabber. The task of the hydraulic actuator is to convert the pressure energy of the working fluid into mechanical energy, causing the piston to move in a straight-line manner.

* Product code: W-SH2P36H320Z

-️ Number comparative: 86409904,SMT2.50/32/305,50-32H305

* Buy once and do it right!

* Producer: Waryński Original
