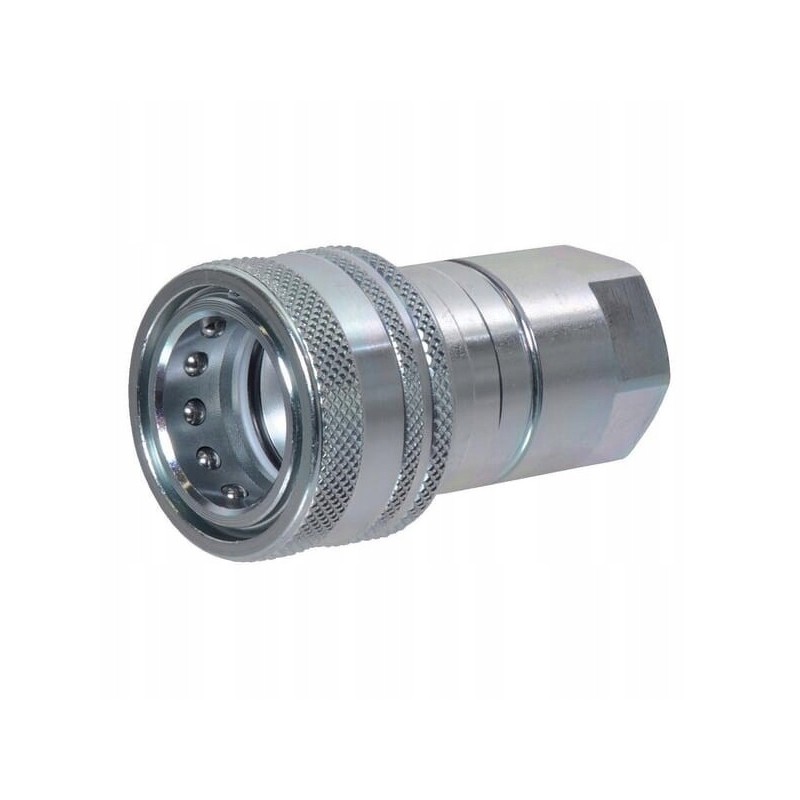

Quick connector cnv socket 1 2 internal thread m22x1 5

Quick connector socket CNV 1/2 internal thread M22x1.5 INDEX: CNV02215F

Material: Steel

Specifications: - Double-acting version

Benefits: - Can be used as a Push/Pull clutch

Features: - Universal

Valve type: Mushroom

Shape: Straight - 2 sides of connection

Application: - Agriculture - Gardening - Construction underground - Industry

Size: 12.5 mm

Outer diameter: 38 mm

ISO standard: 7241-A

Series: NV

Connection diameter: 38 mm

Surface treatment: Chrome-plated

Connector thread type: Metric

Total length: 88 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 246g

Working pressure: 250BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Working temperature max: 125°C

Working temperature min: -25°C

Type of quick connector lock: Balls around the circumference

Connection method: Sleeve offset

Thread pitch of connector no. 2: 1.5 mm

Disconnection method: Sleeve offset

Connector type no. 2: Thread

Thread diameter of connector no. 2: M22

Connection thread type no. 2: Metric

Flow at 2 bar pressure: 75l/min

Connection type no. 1: Quick connector

Connector type no. 1 - male/female: Female

Connector no. 1 thread diameter: 22 mm

Connector no. 1 thread pitch: 1.5mm

Connector 1 key size: 27mm
