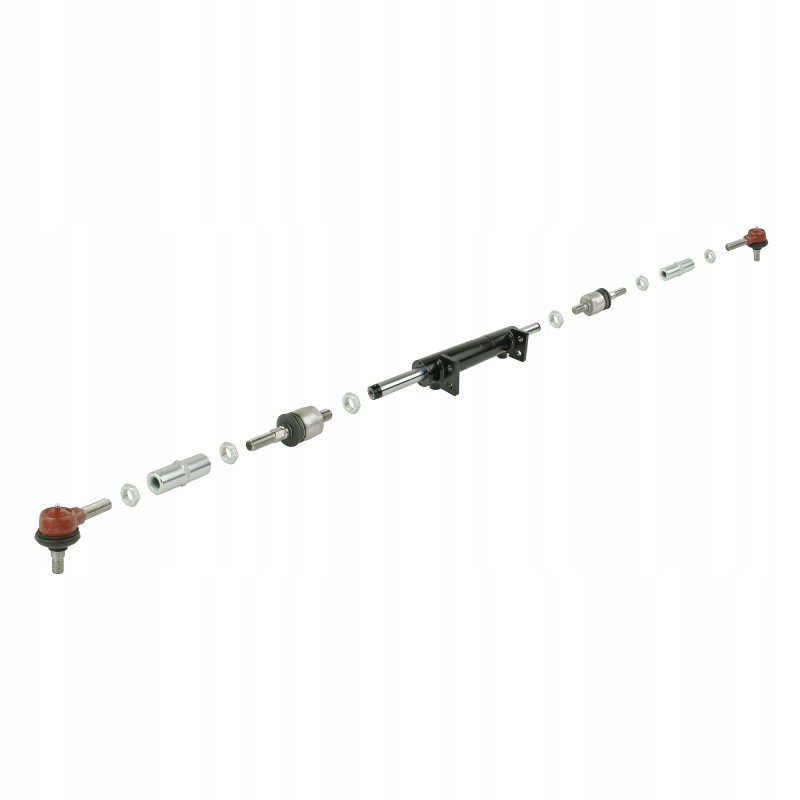

Zetor 2x100 hydrolider booster set

TRANSVERSE SUPPORT HYDRAULIC CYLINDER WITH A DOUBLE PISTON ROD WITH A 2x100mm stroke, WITH LONGITUDINAL AND BALL JOINTSProduction:

Original Hydrolider brand cylinder, symbol: 1.07.00.156

Application:

It is widely used in hydraulic power steering systems in vehicles, machines and tractors in agriculture, construction and industry.

The actuator can be used for proprietary power steering systems in small and medium-sized tractors, including: Zetor 5011, 5211, 7011, 7211 and other derivatives without front drive.

DEAR CUSTOMER, READ THIS BEFORE CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider cylinders, which are the only ones that guarantee long-term reliability.

A cylinder with a double piston rod extending on both sides, mounted directly to the front axle. This is a modern solution used in the latest machine models by top manufacturers. The advantage of transverse actuators is high driving stability and high precision in machine control. The transverse actuator ensures the same number of steering wheel turns when turning right and left.

Dimensions of the complete actuator with the piston rod in the central position and at the extreme positions:

Total width of the complete actuator including joints and connectors depends on the degree of twisting of the individual parts of the set. After the maximum twisting of the components, the minimum distance between the axes of the end pins of the ball joints is 1079mm, the maximum spacing while maintaining a safe level of thread twisting is 1179mm.
