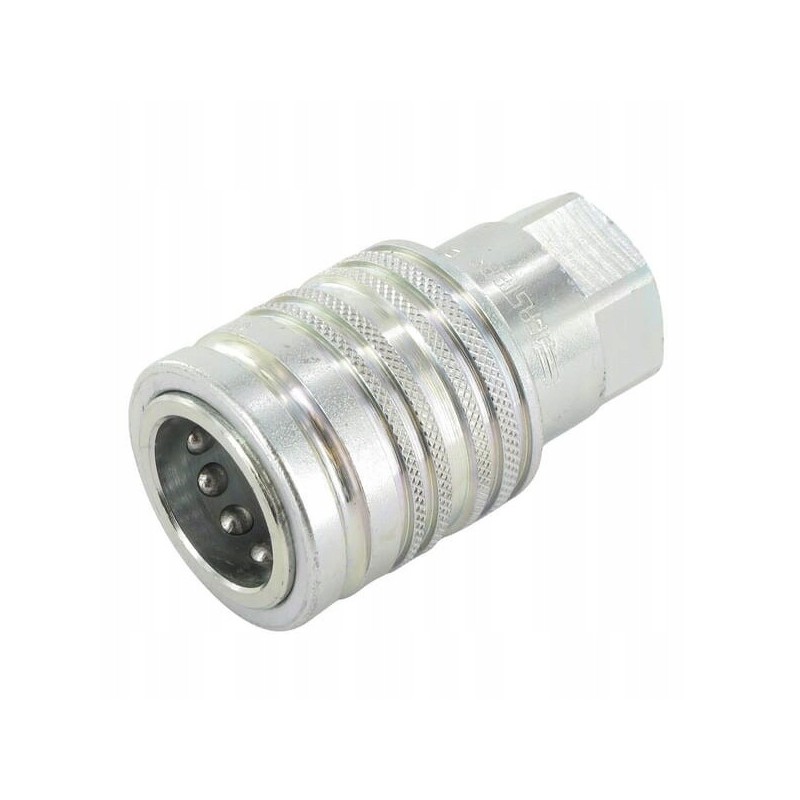

Quick connector PV socket 1 2 internal thread 1 2

Quick connector PV socket 1/2 internal thread 1/2 NPT INDEX: PV12NPTF

Material: Steel

Specifications: - Double-acting version

Benefits: - Can be used as a Push/Pull clutch

Features: - Universal

Valve type: Mushroom

Shape: Straight - 2 sides of connection

Application: - Agriculture - Gardening - Construction underground - Industry

Size: 12.5 mm

Outer diameter: 38 mm

ISO standard: 7241-A

Series: PV

Connector thread diameter: 1/2 inch

Connection diameter: 38 mm

Surface treatment: Chrome plated

Connector thread type: NPTF

Total length: 88mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 213.6g

Operating pressure: 250BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: No

Operating temperature max: 125°C

Operating temperature min: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Push to connect

ANSI standard: B1.20.3

Disconnection method: Pull to disconnect

Connector type no. 2 : Thread

Thread diameter of connection no. 2: 1/2 inch

Thread type of connection no. 2: NPTF

Number of threads per inch of thread of connection no. 2: 14

Flow at 2 bar pressure: 75l/min

Type of connection no. 1: Quick connector

Type connectors no. 1 - male/female: Female

connector no. 1 key size: 27mm
