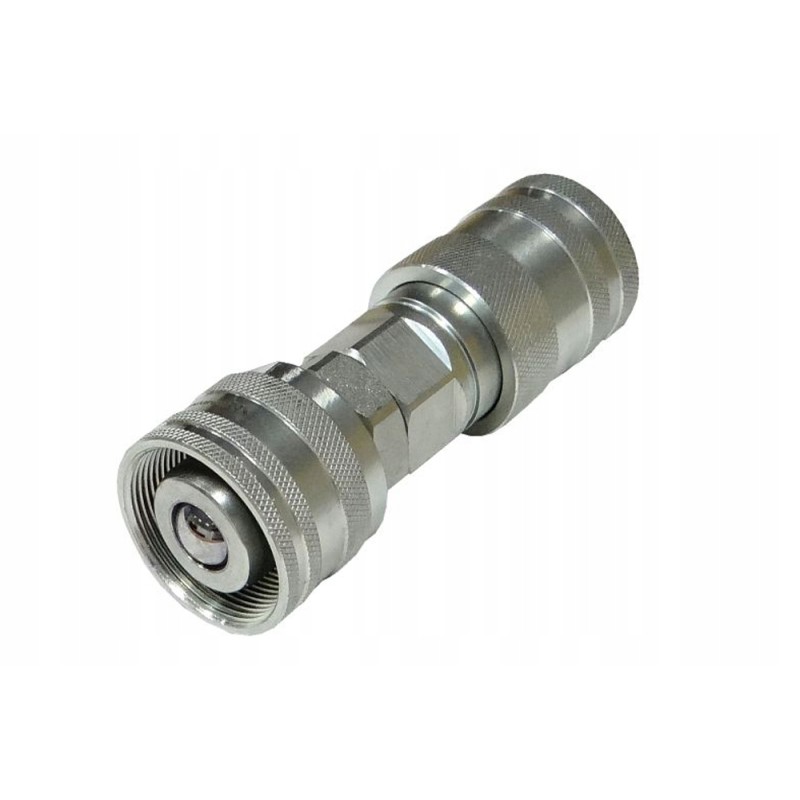

Warynski screwed Euro socket plug reduction

REDUCTION PLUG/SOCKET EURO SCREWED (50493 REDUCTION) WARYŃSKI

REDUCTION PLUG/SOCKET EURO SCREWED (50493 REDUCTION) WARYŃSKI

REDUCTION PLUG/SCREWED EURO SOCKET (50493 REDUCTION) WARYŃSKI

Waryński twisted EURO socket/plug reduction - on one side there is an old-type agricultural twisted plug and on the other side there is a EURO socket (ISO-7241-A) in the Push-Pull version. The most popular hydraulic reducing valves with a very wide range of applications in agriculture. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions of agricultural machinery. Thanks to the reducing valves, you can easily change the connection to a higher standard of EURO (ISO-7241-A) Waryński hydraulic quick connectors in the standard and Push-Pull versions.

*Parameters:

*Plug type: Agricultural twisted

*Socket type: EURO (ISO-7241-A)

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 9 100820W

*Fits sockets: WRSM22GN, WRSM18GN, 50490020K, 50490020, ZSR6160101, ZSR6M20GNK

-️ Application:

Waryński twisted EURO socket/plug reduction used in agricultural machines. Due to the design of old-type connectors with a ball socket without seals, it is inevitable that trace amounts of oil will appear at the point of direct contact between the socket and the plug in the disconnected position. This phenomenon will be unnoticeable in the new type ISO 7241-A Waryński ISO 7241-A (EURO) Waryński and ISO 16028 (dry-cut) Waryński connectors. ,WIAM14SZ

WIAM16SZ WIAM16SZL WIAM18SZ WIAM18SZL WIAM22SZ WIAM22SZL WIAM20SZ WIAR12SW 9100820W 9100816W 9100818W 9100822W 9100814W 9100820W,WRSM22GN WRSM18GN 50 490020K 50490020 ZSR6160101 ZSR6M20GNK

* Manufacturer: Waryński
