Pglo81690 tip dn08 m16x1 5 10l 90

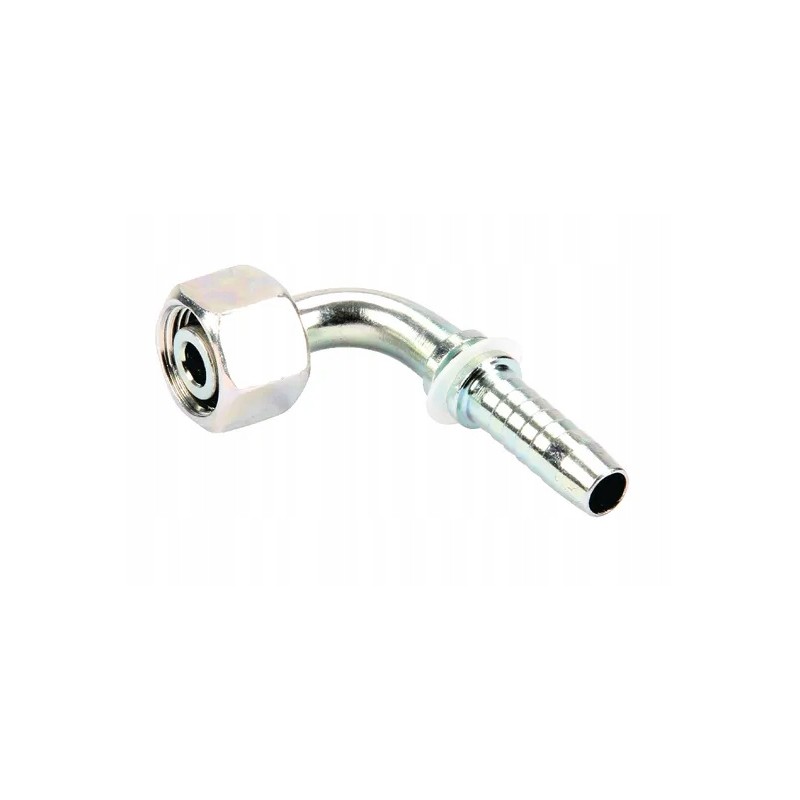

PGLO81690 Tip DN08-M16x1.5-10L-90°EAN

8716106787920

Cone angle

24 °

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector no. 1 type - code

DKOL

Connector no. 1 thread diameter

M16

Pitch thread of connector no. 1

1.50 mm

Wrench size for connector no. 1

19.0 mm

Type of connector no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

5/16 inch

Diameter of connection no. 2

8 mm

Dimension from the axis of the connector to the bottom of the next connector

35 mm

Angle

90 °

Material

Steel

Surface treatment

Zinc

White passivated

Series

10L

OE reference number

H1221593-051600

Connection< p>

xx

Type

DKOL
