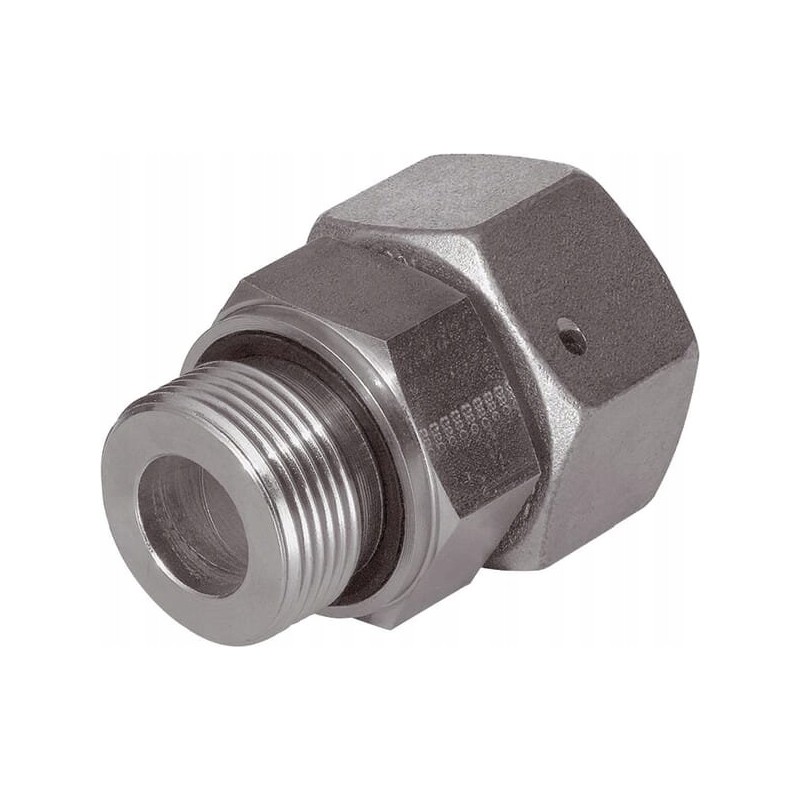

Straight connection with nuts and seals 1 4 bsp m16x1 5 8s

Straight connection with nut and gasket 1/4' BSP - M16x1.5 8S Parameters

Part number: EGESD8SR14WD

Unit: Piece

Manufacturer: Voss

Cone angle: 24 °

Shape: Straight - 2 sides connection

Connector type no. 1: Cutting ring

Connector type no. 1 - Male/Female: Female

Connection Diameter: 8mm

Connector No. 1 Length: 12mm

Connector No. 1 Thread Diameter: M16

Connector thread length: 12 mm

Connector No. 1 thread pitch: 1.50 mm

Connector thread type: BSPP

Connector No. 1 key size: 18, 9 mm

Connector #1 wrench size: 19.0 mm

Connector #2 Type: Thread

Connector #2 Male/Female Type: Male

Thread diameter of connection no. 2: 1/4 inch

Number of turns per inch of thread of connection no. 2: 19

Thread length of connection no. 2: 12 mm

Connection no. 2 thread type: BSP

Wrench size for connection no. 2: 19.0 mm

Pipe diameter: 8 mm

DIN standard: 2401

Inner diameter: 4 mm

Surface treatment: Zinc, Nickel-plated

Max working pressure: 800 BAR

Series : 8S

Max tightening torque: 60 N m

Dimension from the axis of joint no. 2 to the end of the next joint

29.5 mm
